Hertz (Hz): Definition, Role, and Applications in Audio Systems

---

Definition

Hertz (Hz) measures how often something repeats in one second. In audio, it tells us how fast sound waves vibrate. Faster vibrations mean higher sounds, and slower ones create lower tones.

This unit helps producers, sound engineers, and musicians understand how pitch works. Knowing the Hertz value of a sound helps with tuning instruments, adjusting EQ settings, and designing better audio systems.

The name comes from Heinrich Hertz, a 19th-century German physicist. In 1930, scientists replaced the old “cycles per second” label with “Hertz” to make communication easier and more consistent across industries.

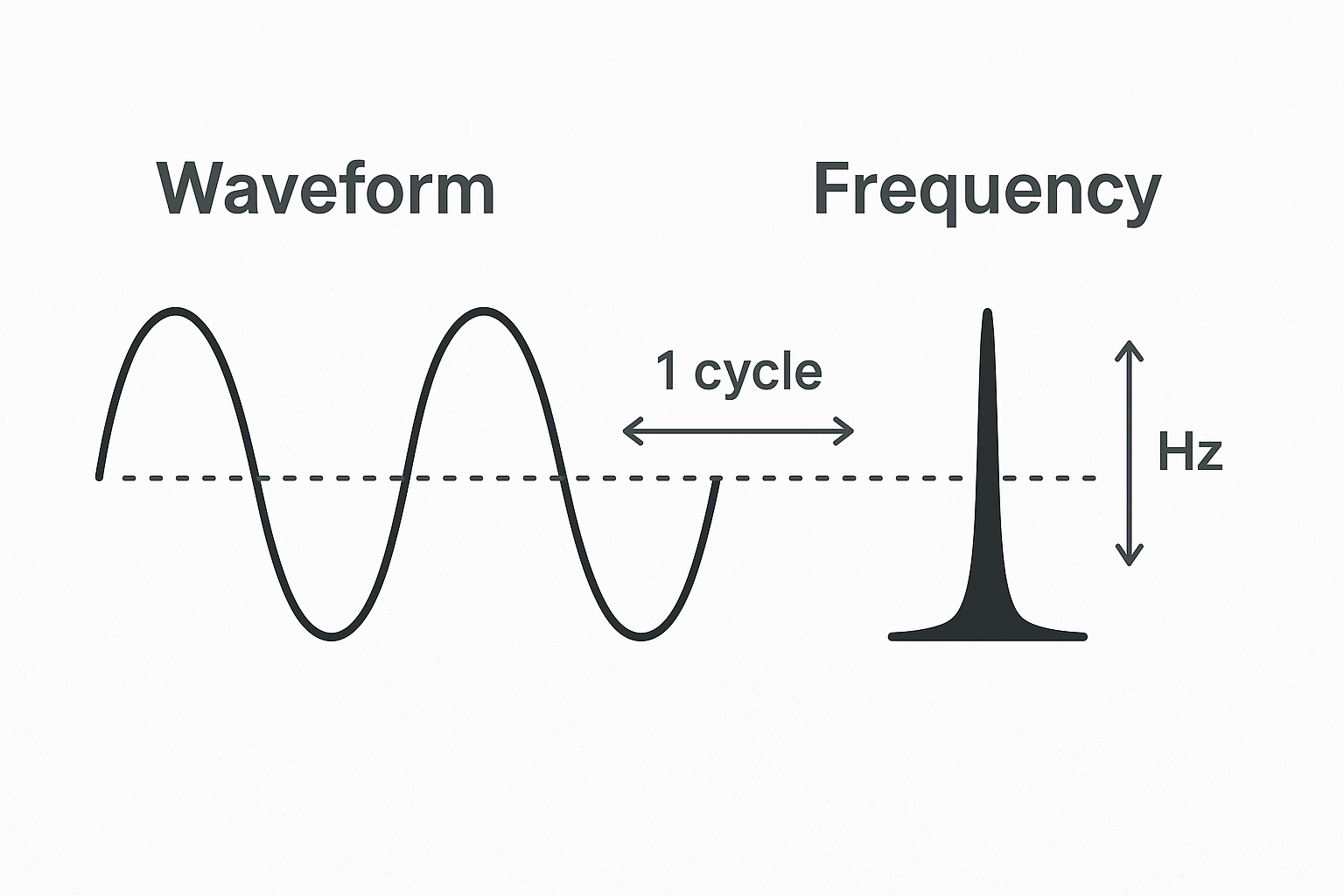

Understanding Frequency and Hertz

Frequency tells us how fast sound waves repeat and directly influences how we hear pitch.

Frequency Basics

Sound is made of vibrations that travel through air as waves. The number of times a wave repeats in one second is its frequency. This is measured in Hertz (Hz), a unit used across all areas of audio.

Lower frequencies, like 50 Hz, produce bass tones. These are common in drums, subwoofers, and rumbles. They are slow-moving waves that feel more physical than sharp.

Higher frequencies, such as 10,000 Hz, create treble sounds. These are used in cymbals, sibilant speech sounds, and fine detail in recordings. They vibrate quickly and are often more directional.

Hertz as a Unit of Measurement

One Hertz equals one full wave cycle per second. If a tone vibrates 100 times each second, it has a frequency of 100 Hz. This standard is used globally for measuring audio signals.

As values increase, we shift to kilohertz (kHz), which equals 1,000 Hz. For example, the standard tuning pitch A4 is 440 Hz, while high-fidelity audio might extend up to 20 kHz.

Devices like radios, wireless microphones, and TV signals operate at even higher ranges – into the megahertz (MHz) or gigahertz (GHz). But in most music and speech applications, frequencies between 20 Hz and 20 kHz are most relevant.

The Role of Hertz in Audio

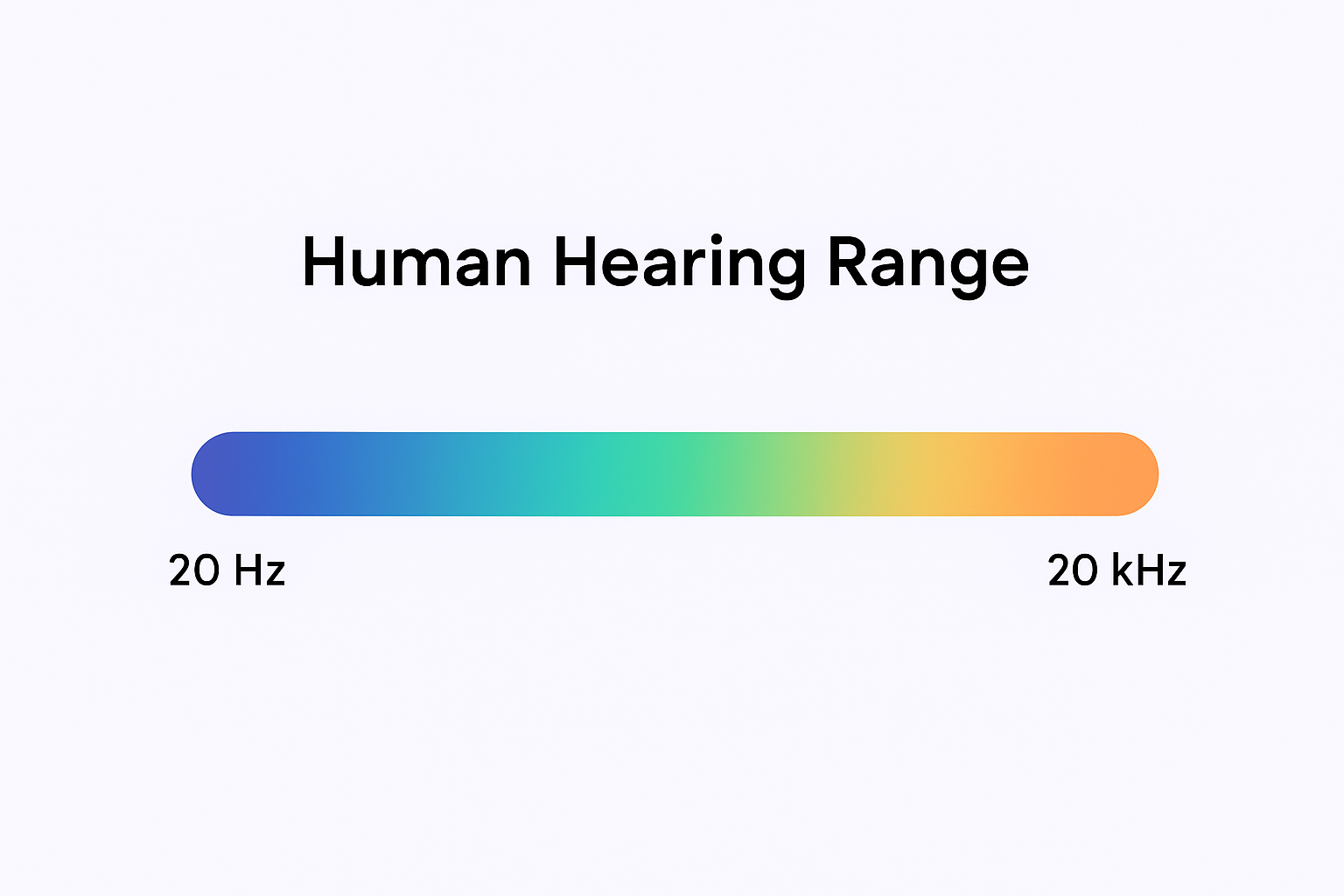

The average person hears from 20 Hz to 20,000 Hz (20 kHz). This range defines the full spectrum of sound detectable by the human ear. Children and teenagers can usually hear closer to the upper limit, but age and noise exposure can gradually reduce high-frequency sensitivity. Most daily sounds and musical content fall well within this range.

Young people often hear higher frequencies than older adults. This is because hearing loss, especially at higher frequencies, is a natural part of aging. Prolonged exposure to loud sounds, like concerts or headphones at high volumes, can speed up this decline, leading to earlier loss of clarity in treble-rich audio.

Exposure to loud noise reduces hearing at the top end. High-decibel environments can permanently damage the tiny hair cells in the inner ear. This results in a gradual decline in the ability to hear higher-pitched sounds, which often goes unnoticed until clarity in music or speech becomes compromised.

Most music sits between 60 Hz and 12 kHz, though sub-bass and air frequencies extend beyond that. The core energy of drums, vocals, and instruments usually fits within this range. Frequencies below 60 Hz add depth and physical impact, while frequencies above 12 kHz add sparkle and a sense of spaciousness.

The Role of Hertz in Audio

Sub-bass: 20 – 60 Hz – Deep rumble, felt more than heard. These frequencies create a physical sensation that enhances cinematic sound effects and bass-heavy music but must be used carefully to avoid overwhelming a mix.

Bass: 60 – 250 Hz – Punch and weight. This range contains the body of bass guitars, kick drums, and low synths. It gives music drive and energy, making it feel full and grounded.

Low Mids: 250 – 500 Hz – Warmth and body. These frequencies shape the fullness of instruments and vocals. Too much in this range can make a mix sound muddy, while too little can make it feel thin.

Mids: 500 Hz – 2 kHz – Clarity of most instruments. This is where the fundamental frequencies of many instruments and vocals live. It’s critical for intelligibility in speech and musical detail.

Upper Mids: 2 – 4 kHz – Presence and detail. Boosting or cutting in this area can strongly affect how forward or recessed a sound appears in a mix. It impacts the sharpness of vocals and the attack of instruments.

Presence: 4 – 6 kHz – Brightness and edge. This range enhances clarity and helps sounds cut through a dense mix. Overuse, however, can lead to harshness and listener fatigue.

Brilliance: 6 – 20 kHz – Air and sparkle. These high frequencies contribute to the sense of space and openness in a mix. They’re important for high-end detail, cymbals, and room ambiance, but can be lost if not preserved during compression or low-quality playback.

Applications of Hertz in Audio Systems

Hertz is used in nearly every aspect of sound system design, tuning, and playback.

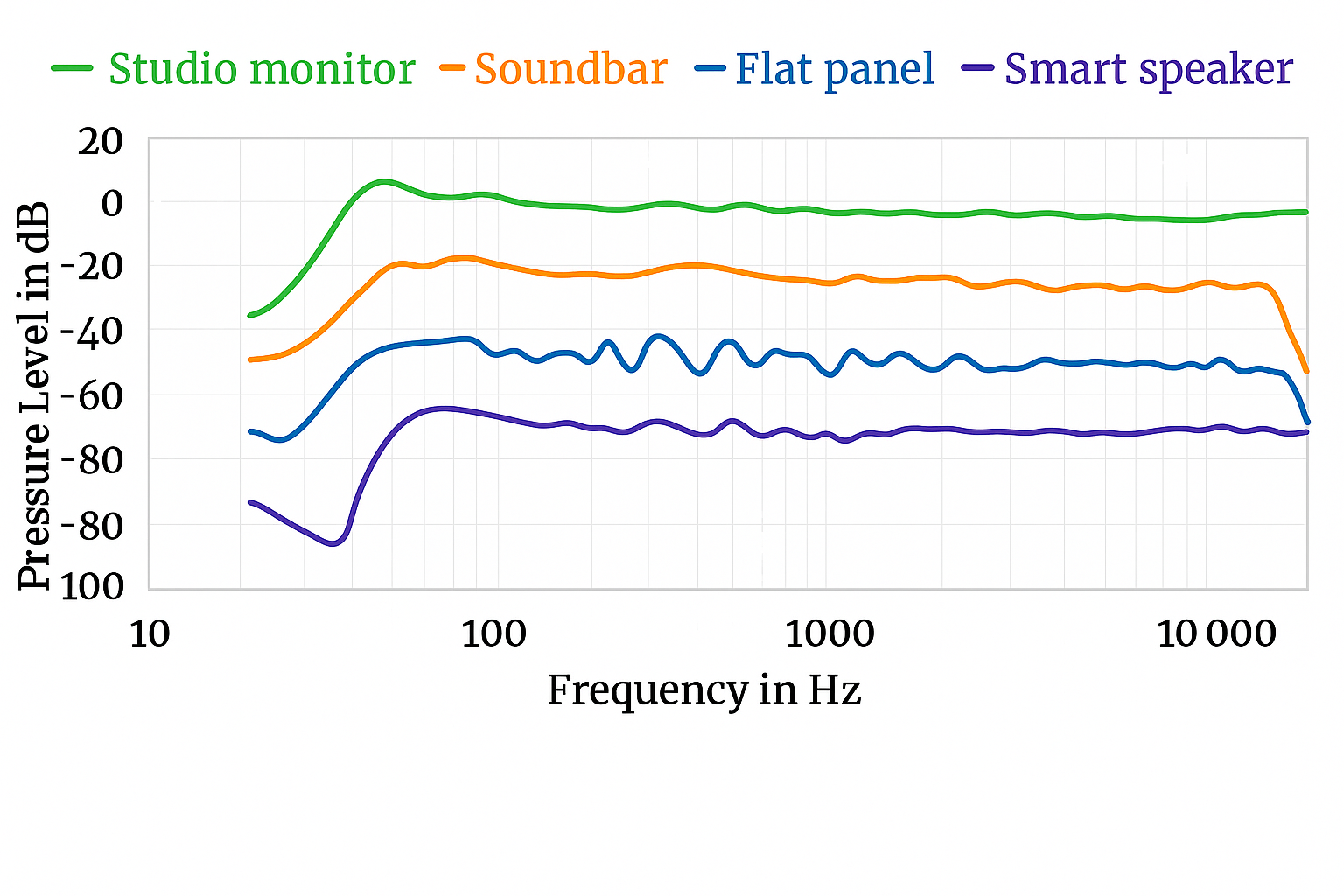

Speaker and Headphone Frequency Response

Speakers and headphones are built to reproduce certain frequency ranges. This range is called “frequency response”. For example, a speaker might cover 50 Hz to 20 kHz. A “flat” response means the device plays all frequencies equally, while a “colored” response adds emphasis to specific tones.

Bass sounds require large drivers, such as subwoofers, to move more air. Treble needs smaller drivers, such as tweeters, for better precision. That’s why full-range systems often combine different speaker sizes.

Knowing a device’s frequency limits helps you match it to your needs. Studio monitors prioritize accuracy, whereas consumer headphones often enhance bass for a more pronounced effect.

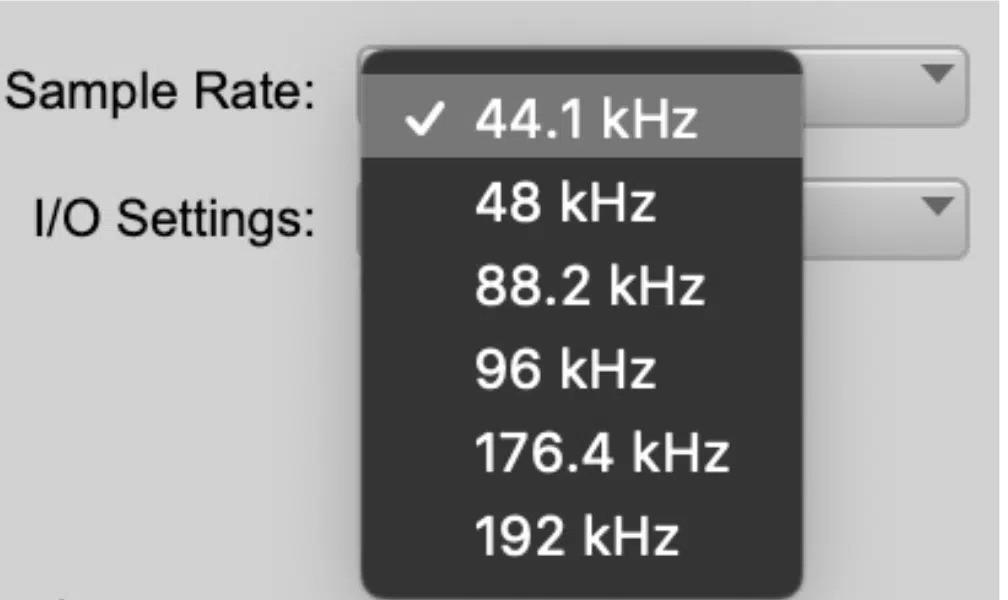

Sample Rate in Digital Audio

In digital recording, sound is captured by taking rapid snapshots of a wave. This is called sampling. The sample rate, measured in kilohertz, defines how many times per second this happens. To preserve sound detail, it must be at least twice the highest frequency you want to record.

A 44.1 kHz sample rate captures frequencies up to about 22 kHz, which covers human hearing. It’s used in CDs and most streaming audio. Video uses 48 kHz to stay in sync with frame rates.

Higher sample rates like 96 kHz or 192 kHz offer more headroom and are used in high-resolution formats, though not always audible.

Equalization (EQ) and Filtering

Equalization (EQ) tools adjust volume levels for specific frequencies. For example, you can boost vocals around 1–3 kHz or cut boomy bass around 100 Hz. Each control is tied to a Hertz value, allowing precise changes based on how a sound behaves.

A high-pass filter removes low frequencies, helping clean up mic rumble or stage noise. It’s often set around 80 Hz. A low-pass filter does the opposite – it removes high-frequency hiss, usually set between 8 and 12 kHz.

Parametric EQ lets you fine-tune a frequency’s boost or cut range and how wide or narrow that change is. All of these tools rely on Hertz as the basic reference.

Hertz in Music and Sound Design

In music production and sound design, Hertz is the foundation for tuning, synthesis, and special effects.

Musical Notes and Their Frequencies

Each musical note represents a specific frequency. For example, the A above middle C (A4) equals 440 Hz, which is the international tuning standard for orchestras and instruments. When you go up an octave, the frequency doubles. So, A5 equals 880 Hz.

Knowing note frequencies is key to tuning instruments and using digital tools like pitch correction. It also helps musicians and producers align instruments correctly during mixing and arrangement.

Synthesizers and samplers often allow users to fine-tune pitch in Hertz. This precise control ensures that every sound fits harmoniously within a musical piece.

Synthesizers and Oscillators

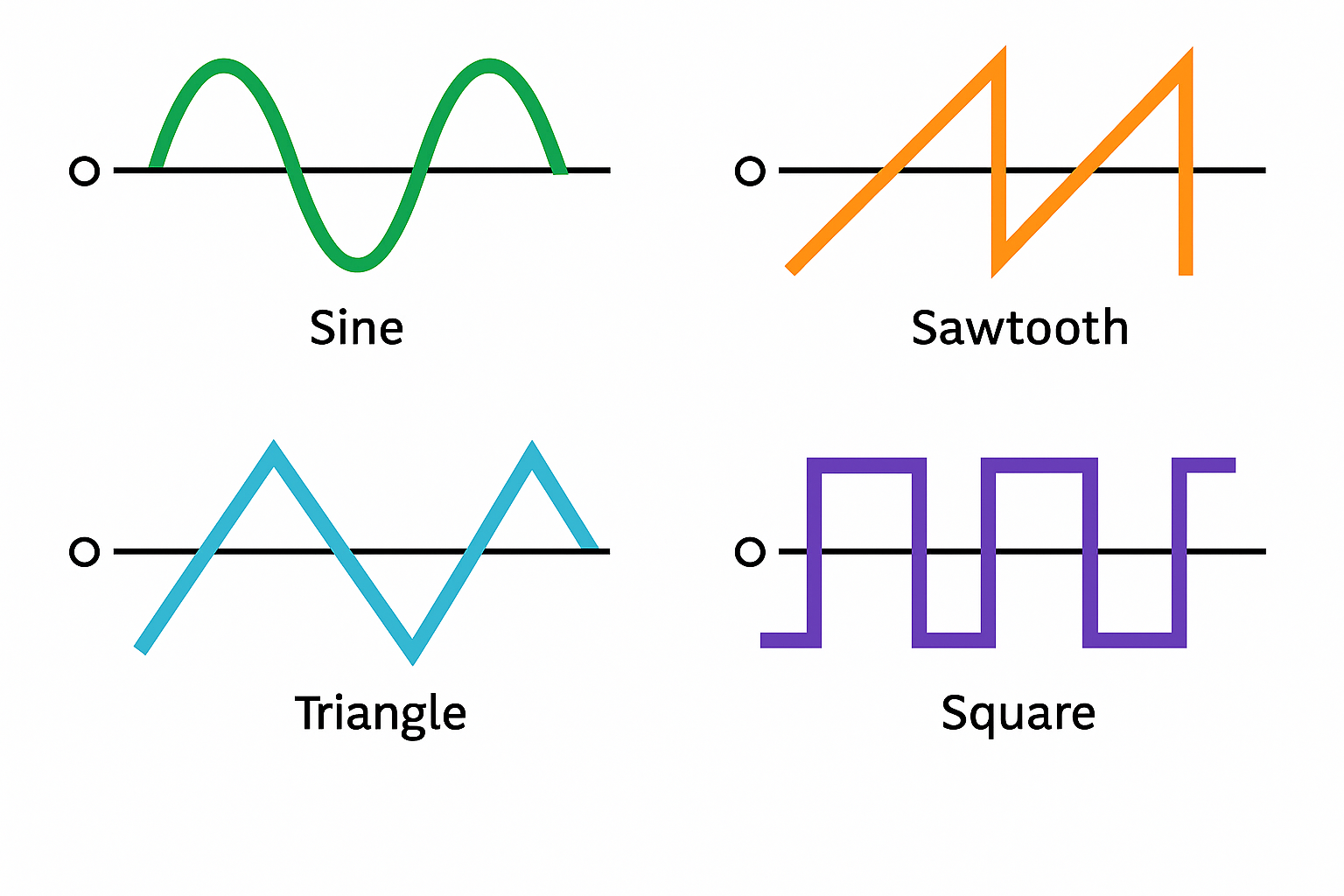

Synthesizers generate sound using oscillators, which vibrate at specific frequencies. The most common waveforms are sine, square, triangle, and sawtooth. Each waveform has a different harmonic structure and tone, which affects how it blends with other sounds.

Sine waves are smooth and clean. Square waves sound hollow and electronic. Sawtooth waves are bright and edgy. Triangle waves are soft and subtle. These characteristics help sound designers choose the right texture.

Low-frequency oscillators (LFOs) usually operate below 20 Hz. While not heard directly, they control effects like vibrato or filter sweeps, adding motion and variation to a sound without changing its pitch.

Infrasound and Ultrasound in Audio

Infrasound refers to frequencies below 20 Hz, which fall outside the range of human hearing. However, these sounds can still be felt as vibrations. Filmmakers use them in horror or suspense scenes to create a feeling of unease.

Ultrasound is above 20,000 Hz and also beyond human hearing. It isn’t used for music but can appear in audio processing tools, imaging technology, or high-end special effects for experimental compositions.

While not part of typical playback systems, infrasound and ultrasound are still relevant to advanced sound design, film scoring, and scientific applications involving audio frequencies.

Measuring and Analyzing Hertz in Audio

Audio professionals use tools like spectrum analyzers to see which frequencies are present in a recording. Many DAWs include FFT-based tools that break sound into frequency bands. These visual tools help identify problems like masking, muddiness, or missing highs.

Microphones and rooms both affect how Hertz values are captured and heard. Some microphones boost treble, which can make vocals sound clearer. In small or untreated rooms, certain frequencies may get exaggerated or lost, which changes the way recordings sound.

Common Misconceptions

Many people think higher sample rates always mean better sound, but this isn’t true in practice. Most music listeners can’t hear any difference above 48 kHz, and if the original recording isn’t high-resolution, increasing the sample rate adds no benefit.

Another common belief is that anything above 20 kHz doesn’t matter because humans can’t hear it. While that’s mostly correct, some high-frequency content can subtly affect the way we perceive lower sounds due to how audio systems handle those interactions.

Not all bass frequencies feel the same. Very low sounds like 30 Hz create a physical sensation, while 80 Hz is more easily heard. Sub-bass and kick drums each play a different role in how bass is experienced.

Practical Examples and Experiments

Simple tests and real-world uses help you understand how Hertz applies to audio and music production.

Frequency Sweep Test

A frequency sweep test plays a tone that gradually increases from 20 Hz to 20 kHz. It reveals your personal hearing range and also helps evaluate headphones or speakers. Most adults won’t hear past 16 kHz, especially with age or ear fatigue.

EQ Adjustments in Mixing

EQ adjustments use Hertz to target specific tonal ranges. Removing a bit around 300 Hz can clean up a muddy vocal. Adding a slight boost at 5 kHz can make a snare drum cut through a mix. Subtle changes in the right frequency range improve clarity without causing harshness.

Tuning Instruments Using Frequency Detection

Tuning instruments also involves understanding frequency. A digital tuner displays the exact Hertz value of each note. Standard tuning places A4 at 440 Hz, but some musicians prefer alternate tunings like 432 Hz. These small changes affect the overall feel and resonance of a performance.
