Harmonic Distortion: Definition, Measurement, and Audio Impact

---

Definition

Harmonic distortion in audio refers to the addition of extra frequency components to an original signal. These added frequencies are harmonics – multiples of the signal’s fundamental frequency. This phenomenon changes how audio sounds when played through electronic equipment like amplifiers, speakers, or digital processors.

In audio engineering, harmonic distortion is a critical measurement. It affects clarity, tone, and realism. In high-fidelity (hi-fi) systems, engineers aim to minimize distortion. In music production, however, some distortion is intentionally added for artistic effect.

Not all distortion is negative. Even-order harmonics, for example, can produce a warm, musical sound. Odd-order distortion tends to be harsher and more noticeable. The subjective nature of distortion makes it both a design concern and a creative tool.

Fundamental Concepts

What Are Harmonics?

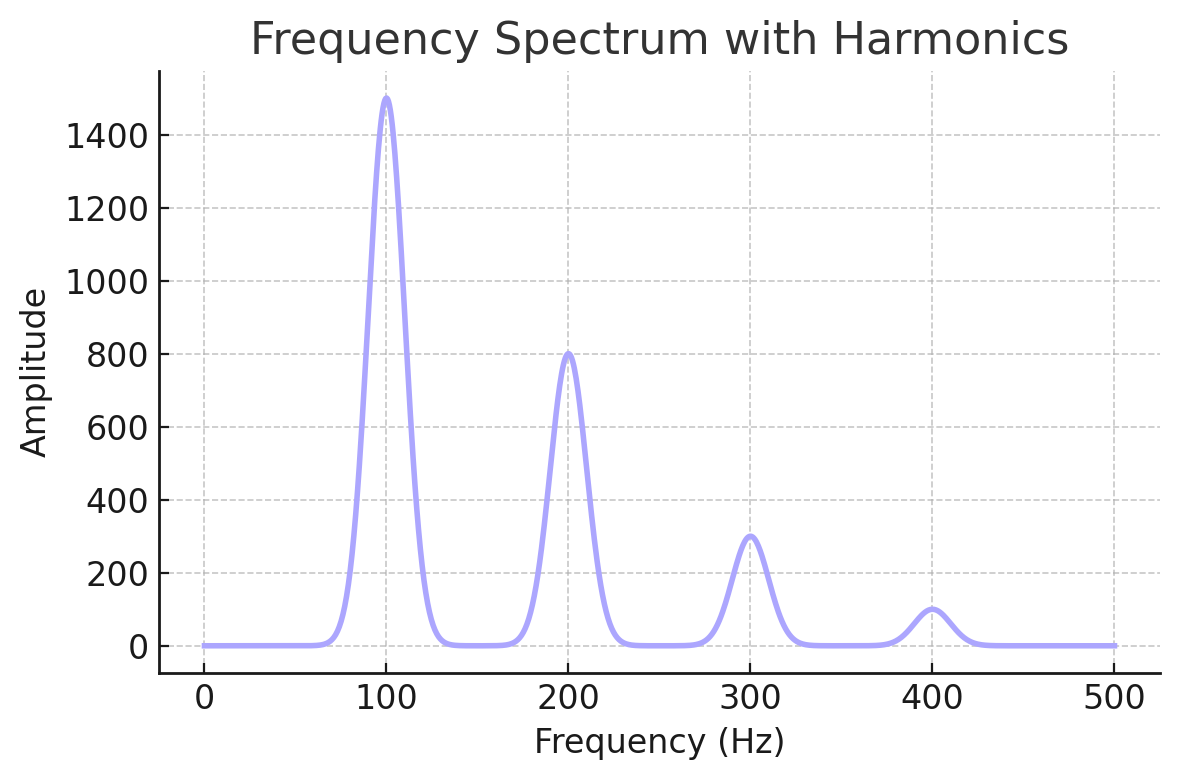

Harmonics are frequency components that exist above a signal’s base frequency, known as the fundamental. For example, if the fundamental is 440 Hz (A4 on a piano), the second harmonic is 880 Hz, the third is 1320 Hz, and so on. These are integer multiples of the base tone.

Acoustic instruments naturally generate harmonics, which contribute to their unique timbre. A flute, guitar, and violin may play the same note, but their harmonic content gives each a different character.

Linear vs. Nonlinear Systems

In linear systems, input and output have a direct, proportional relationship. This means the waveform remains unchanged in shape and only changes in amplitude.

Nonlinear systems behave differently. As the input increases, the output may not follow in proportion. These nonlinearities introduce harmonic distortion by generating new frequencies not present in the original signal.

Types of Harmonic Distortion

Different types of distortion affect sound in unique ways, and each has a specific role in how audio systems are measured and judged.

Total Harmonic Distortion (THD)

THD measures how much harmonic content is added to a signal by an audio system. It compares the combined strength of the second harmonic and above to the strength of the original tone. The lower the percentage, the cleaner the signal.

In high-fidelity systems, a THD below 0.1% is considered excellent. In commercial sound setups or live environments, values up to 1% may still be acceptable because the distortion is less noticeable to the human ear in noisy or dynamic settings.

THD+N (Total Harmonic Distortion Plus Noise)

THD+N gives a more complete picture than THD alone. It includes harmonic distortion and background noise together, simulating what a listener actually hears.

This measurement is performed using sine wave test tones and analyzed with tools like FFT. Standards from organizations such as the Audio Engineering Society (AES) ensure consistency across different labs and manufacturers.

Even-Order vs. Odd-Order Harmonics

Even-order harmonics, such as the second and fourth, tend to blend smoothly with the original tone and are perceived as warm or musical. This is one reason analog and tube gear is favored in some recording setups.

Odd-order harmonics, like the third and fifth, are more abrupt and can sound rough or edgy. These appear more often in solid-state circuits under heavy load or clipping.

Intermodulation Distortion (IMD)

Intermodulation distortion doesn’t follow the simple pattern of harmonic multiples. It happens when different tones interact to create unwanted frequencies between them.

IMD is often more noticeable and unpleasant because it disrupts the natural spacing and balance of harmonic content. It can make complex signals sound smeared or muddy, especially in music or speech.

Causes of Harmonic Distortion

Harmonic distortion can happen naturally in audio systems or be introduced on purpose, depending on the tools and choices involved.

Electronic Components

Amplifiers introduce harmonic distortion when pushed beyond their clean operating range. Tube amplifiers often create even-order harmonics, which sound smooth and musical. In contrast, transistor amps tend to generate odd-order harmonics that can sound more aggressive, especially when overdriven.

Speakers and Transducers can distort sound when their parts move in a nonlinear way. If the speaker cone doesn’t return to its resting position cleanly, or if the cabinet vibrates, unwanted harmonics appear. This also happens when speakers are driven too hard and exceed their physical limits.

Analog Tape and Magnetic Saturation naturally produce harmonic distortion when the tape is overloaded. Many engineers use this effect intentionally to add warmth and subtle coloration to a sound.

Signal Processing & Digital Systems

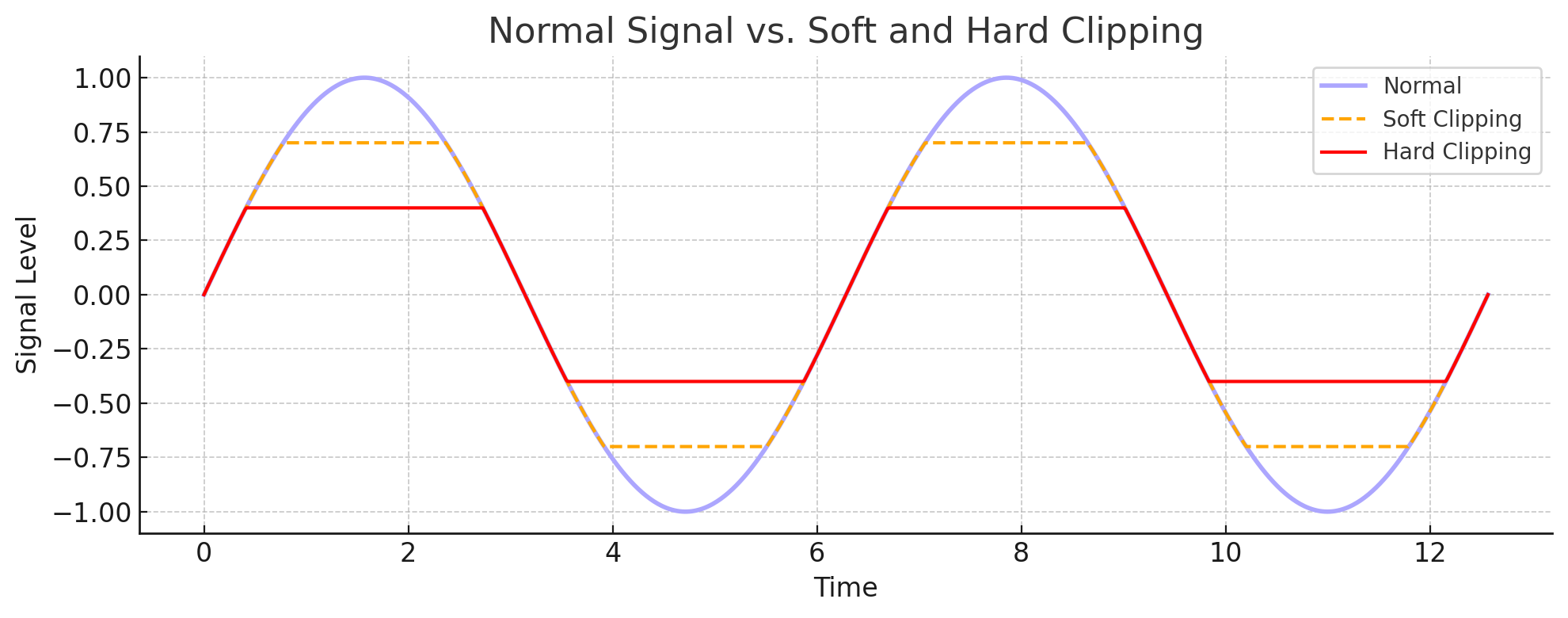

Digital Clipping happens when audio exceeds the available digital range. This flattens waveforms sharply and causes harsh, unpleasant distortion with added harmonics.

Aliasing and Quantization Errors result from poor digital sampling. If not properly managed, they can add false harmonics or noise to the signal.

Intentional Distortion

Harmonic distortion isn’t always a flaw. In music production, it’s often added on purpose. Guitar pedals, analog modeling plugins, and tape emulators are all used to shape sound. Harmonic exciters in mastering chains add subtle enhancement that makes tracks feel fuller or more energetic. When used well, distortion becomes part of the sound design.

Measuring Harmonic Distortion

Harmonic distortion is measured by sending a pure sine wave through an audio device and checking the output for added frequencies. This is done using test equipment like Audio Precision analyzers or software tools such as REW (Room EQ Wizard). The output is recorded and analyzed with a Fast Fourier Transform (FFT), which shows whether any harmonics appear that weren’t in the original signal.

Audio specifications list THD, IMD, or THD+N as percentages. In high-fidelity audio gear, THD often stays below 0.01%. Studio monitors and interfaces used in music production usually aim for less than 0.1%. Consumer gear can tolerate higher values, especially when design focuses on price or battery life.

Understanding these numbers helps users compare products and choose equipment that fits their needs. A low distortion rating means cleaner audio and more accurate sound, which matters most in professional or critical listening environments.

Effects on Sound Quality

Harmonic distortion changes how audio feels and sounds. When it’s unintentional or poorly controlled, it can reduce clarity by covering up fine details in the mix. Odd-order distortion, in particular, creates a harsh or metallic tone that can make music sound brittle or cold. Over time, this can lead to listener fatigue, especially during long sessions or high-volume playback.

In other cases, distortion is added on purpose. When used with care, it can enhance a vocal, add body to a guitar, or give drums more punch. Many producers use distortion to make tracks feel fuller or more energetic.

Emulations of tube gear and analog tape are especially popular for their warm, musical qualities. In genres like rock, hip-hop, and electronic music, distortion is often part of the sound itself. Some listeners even enjoy mild distortion in casual setups because it adds color and character to the listening experience.

Mitigation & Control

Managing harmonic distortion requires a mix of good design, digital tools, and an understanding of how people actually hear sound.

Circuit Design Techniques

Carefully designed analog circuits can reduce unwanted distortion. Many amplifiers use negative feedback to keep the output clean by constantly comparing it to the input and correcting differences.

Using high-grade parts, such as low-noise operational amplifiers and stable power supplies, also helps limit how much harmonic distortion is introduced as the signal passes through each stage.

Digital Correction & Processing

In digital systems, engineers rely on precise processing to avoid adding distortion. Linear-phase EQ maintains timing across frequencies, preserving clarity.

Oversampling increases the resolution of a signal, which helps avoid aliasing and reduces errors during processing. Dithering adds low-level noise to smooth out quantization issues when reducing bit depth, making transitions less harsh.

Listener Preferences & Psychoacoustics

Even when distortion is present, it isn’t always a problem. Studies show that listeners often enjoy small amounts of even-order harmonics, especially in music.

Human hearing itself is nonlinear, which may explain why some types of distortion feel more natural or pleasant. This also explains why analog-style processing remains popular, even in today’s digital workflows.

Practical Applications

In music production, harmonic distortion is often used as a creative tool. Producers apply tape emulation, saturation effects, and harmonic exciters to add character and color to vocals, drums, and guitars. These techniques are especially common in genres like pop, rock, and lo-fi, where warmth and texture are part of the sound.

In live sound settings, engineers must manage levels carefully to prevent distortion. They keep headroom in mind when setting up amplifiers and use proper gain staging throughout the signal chain. This reduces the risk of unwanted clipping and helps preserve sound quality in loud environments.

For everyday listeners, harmonic distortion can also be a deciding factor when choosing audio gear. When comparing speakers, amplifiers, or headphones, it’s useful to check the THD rating. A total harmonic distortion of less than 0.1% is usually low enough that most people won’t hear any impact on clarity or tone.
