Equalizer (EQ Unit): Definition, Types, and Common Uses in Audio Production

---

Definition

An Equalizer (EQ Unit) is a tool used to control the tonal balance of audio by adjusting the level of specific frequency ranges. It allows sound engineers to boost or cut parts of the frequency spectrum in a recording, mix, or live environment.

EQ improves clarity, corrects unwanted tones, and shapes the overall character of audio. It’s used to fix problems and adjust how sounds fit together in a mix or listening environment.

Equalizers are found in music production, live sound reinforcement, broadcasting, film post-production, and consumer systems such as car stereos and home audio setups.

Types of Equalizers

Equalizers come in different forms, each designed to solve specific problems or shape tone in a particular way.

Graphic Equalizer

A graphic EQ uses a set of fixed frequency bands, each controlled by its own slider. It’s common in live sound systems and home audio setups for adjusting room tone. A 31-band graphic EQ is often used in venues to reduce feedback and tailor the mix to the space.

Parametric Equalizer

Parametric EQs give precise control over frequency, gain, and bandwidth (Q). They’re found in nearly every DAW and studio workflow, making them ideal for shaping tone with detail and flexibility.

Semi-Parametric Equalizer

This version allows frequency and gain adjustments but has a fixed bandwidth. It’s often found on analog mixers and budget-friendly hardware where full parametric control isn’t needed.

Shelving Equalizer

Shelving EQs affect all frequencies above or below a set point. They’re used for broad tone shaping, like turning up the bass or softening the highs in a track.

High-Pass / Low-Pass Filters

A high-pass filter removes unwanted low-end sounds like mic rumble. A low-pass filter removes high-frequency noise or hiss. Both are common in voice recording and sound design.

Notch Filter

A notch filter sharply cuts a narrow frequency range. It’s useful for removing hums, ringing, or feedback without changing the rest of the sound.

Dynamic EQ

Dynamic EQ reacts to the signal level. It applies EQ only when needed – helpful for smoothing harsh vocals or tightening inconsistent sounds during mastering.

Key EQ Parameters

To use equalization effectively, it’s important to understand the main settings available on an EQ plugin or hardware unit. Each parameter gives you a different level of control over how sound is shaped or corrected in the mix.

Frequency (Hz) determines which part of the sound spectrum you are adjusting. For example, if you set the EQ to 100 Hz, you are affecting bass frequencies like kick drums or deep synths. If you set it to 3 kHz, you are targeting upper midrange, which can make vocals sound clearer or more aggressive depending on the boost or cut.

Gain (dB) controls how much you raise or lower the selected frequency. A positive gain adds volume to that frequency range, making it more present in the mix. A negative gain reduces the level, which can be helpful for removing harshness, muddiness, or sibilance without affecting the rest of the track.

Bandwidth or Q Factor defines how wide or narrow the EQ adjustment will be. A narrow Q affects only a small part of the spectrum, which is ideal for fixing specific problems like ringing or feedback. A wide Q spreads the effect across more frequencies, making it better for broad tonal shaping or smoothing out a general area.

Slope applies to filters like high-pass and low-pass. It controls how quickly the filter removes frequencies beyond the cutoff point. A gentle slope of 6 dB per octave sounds more natural, while a steep slope of 24 dB per octave removes unwanted frequencies more aggressively, useful for isolating a sound or cleaning up low-end buildup.

Common Uses of EQ in Audio Production

EQ is used at every stage of audio production to solve problems, shape tone, and ensure clarity. From basic correction to creative effects, it plays a key role in how audio is heard and felt.

Corrective EQ

Corrective EQ is used to clean up problematic frequencies. For example, a vocal recording might sound boxy or muffled due to excess energy in the low-mids. Cutting around 300 Hz can improve clarity and reduce muddiness.

Similarly, harsh cymbals or hiss in a recording can be softened by gently reducing high frequencies between 6 and 10 kHz. These kinds of corrections make a track easier to mix and more pleasant to listen to.

Creative EQ

Creative EQ is used to achieve a stylistic or emotional effect. Applying a high-pass and low-pass filter together can create a telephone-like sound, which is often used in transitions or intros.

A gentle high-shelf boost at 12–16 kHz can add “air” to a vocal, giving it a polished and professional feel without making it sound artificial.

Spectral Balance

EQ helps each instrument fit into its own space in the frequency spectrum. If two instruments share similar frequency ranges, like a kick drum and a bass guitar, one may mask the other. EQ can be used to carve space so both are heard clearly. This technique is critical in dense mixes.

Feedback Control

In live sound, notch filters are often used to remove specific feedback frequencies. These precise cuts help avoid ringing or howling without damaging the overall mix.

Room Correction

Room acoustics can color the sound. EQ can help compensate for this by reducing resonant peaks or adjusting for overly absorbent environments.

EQ Techniques & Best Practices

Understanding how to apply EQ effectively is just as important as knowing where to adjust. These techniques are used by professionals to solve problems without damaging the musical feel of a mix.

Subtractive EQ

Subtractive EQ means starting by removing frequencies that are causing issues instead of boosting others to compensate. For example, instead of boosting treble to make a vocal clearer, you might cut some low-mids that are making it sound muddy. This helps maintain a natural tone and avoids adding phase shifts or distortion.

Frequency Sweeping

To find problematic frequencies, many engineers use a technique called frequency sweeping. You apply a narrow boost and slowly sweep across the frequency range while listening for harshness, boxiness, or ringing. Once you find the issue, you reduce that frequency slightly instead of boosting others. This targeted method prevents over-processing and focuses on problem-solving.

High-Passing

High-pass filters are commonly used to clean up the low end. Instruments like guitars, pianos, or vocals don’t need sub-bass frequencies, so removing anything below 80–100 Hz helps reduce rumble and makes space for the kick and bass.

Mid-Side EQ

Mid-side EQ allows separate control over center and stereo content. Cutting low-mids in the mid channel can bring clarity to vocals, while boosting the side channels at higher frequencies can make the mix sound wider without increasing volume.

Avoiding Over-EQing

Too much EQing can flatten the energy of a mix and cause phase problems. Always compare with reference tracks and listen on different systems to be sure your choices still translate well. Subtle moves are often the most effective.

EQ in Different Contexts

EQ is used in many different parts of audio production, and the approach changes depending on the goal. Whether you’re in the studio, on stage, or listening at home, EQ helps shape how sound is heard and understood.

Mixing & Mastering

In mixing, EQ is used to balance the frequency content of each instrument or vocal. This helps prevent overlap between sounds that live in the same frequency range. For example, if a guitar and a vocal both occupy the midrange, EQ can carve out space so each one stands out. Mix engineers often make small cuts and boosts to help every element fit together without getting lost.

In mastering, the EQ adjustments are more subtle. The goal is to shape the overall tonal curve of the entire mix. A mastering engineer might add a slight high-shelf EQ for brightness or reduce low-mid buildup to create a cleaner, more defined sound. These changes are gentle but help the final track sound consistent across all playback systems.

Live Sound

In live environments, EQ is used in real time to manage feedback and room acoustics. Notch filters are applied to specific frequencies that cause monitors to ring or feedback. Graphic EQs are often used on the front-of-house system to tailor the output based on the venue’s sound characteristics. Adjustments are made to reduce harsh reflections or increase speech clarity.

Consumer Audio

Even in everyday listening, EQ plays a role. Car stereos and home theater systems often come with EQ presets or manual controls. Users can adjust bass, midrange, and treble settings to match their personal preferences or to suit different types of music.

Digital vs. Analog EQ

EQ tools come in two main forms: analog hardware and digital software. Each type has its strengths, and the choice depends on workflow, preference, and the goals of the project.

Analog EQ (Hardware)

Analog EQ is often preferred for the warmth and musical tone it brings to a mix. Hardware units like the Pultec EQP-1A or API 550A are known for adding subtle harmonics and coloration that many engineers find pleasing. These EQs work through physical components like capacitors and transformers, which shape the sound in unique ways that are hard to reproduce digitally.

However, analog EQ lacks modern convenience features. Settings can’t be saved easily, and making precise adjustments often requires listening carefully without visual aids. Still, many professionals reach for analog gear when they want a specific tone or character that complements the sound.

Digital EQ (Plugins & DSP)

Digital Equalizer provides much more control and flexibility. Plugins like FabFilter Pro-Q, iZotope Ozone EQ, or Waves SSL offer precise adjustments, visual frequency displays, and modes like linear-phase or dynamic EQ. These features make it easier to make clean, surgical cuts or broad tonal changes with confidence.

Digital EQs are also easier to automate and recall, making them ideal for modern production where speed and consistency matter. Many plugins emulate the sound of analog units, giving users the option to blend warmth with precision.

Both types of EQ can be used together. Analog gear may shape the tone during tracking or mixing, while digital EQ fine-tunes the final result. The key is knowing when and why to use each one.

Notable Equalizer Units & Plugins

Equalizers come in both hardware and software forms, each with its own tone, features, and use cases. Some are prized for their musical color, while others are valued for precision and flexibility.

Hardware

Pultec EQP-1A is famous for its unique ability to boost and cut the same frequency band at once. This creates a smooth, airy tone that adds depth without sounding harsh. It’s especially popular for vocals, bass, and mix bus enhancement.

API 550A and 550B are known for their punchy, forward sound. These units use fixed frequency points and stepped gain controls, which makes them quick to use in fast-paced studio sessions. They’re often used on drums, guitars, and rock vocals for added bite.

Neve 1073 delivers a rich, warm tone with strong midrange character. Its analog circuitry adds natural saturation, making it a go-to for engineers who want their tracks to sound full and musical right from the start.

Software

FabFilter Pro-Q 3 is one of the most flexible EQ plugins available today. It offers transparent sound, dynamic EQ bands, and a visual interface that lets users see exactly how changes affect the audio. It’s ideal for both surgical fixes and creative shaping.

Waves SSL Channel EQ models the tone of the legendary SSL 4000 console. It’s favored for its slightly aggressive, mix-ready tone and works well on vocals, snares, and full instrument groups.

iZotope Ozone EQ is built for mastering, with tools that analyze frequency balance across the full mix. It also offers matching and dynamic features, helping engineers make final tonal adjustments that translate well across platforms and devices.

Advanced EQ Concepts

EQ techniques go beyond basic cuts and boosts. Once you understand how frequencies interact in a mix, advanced tools offer more precise and flexible control for both corrective and creative work.

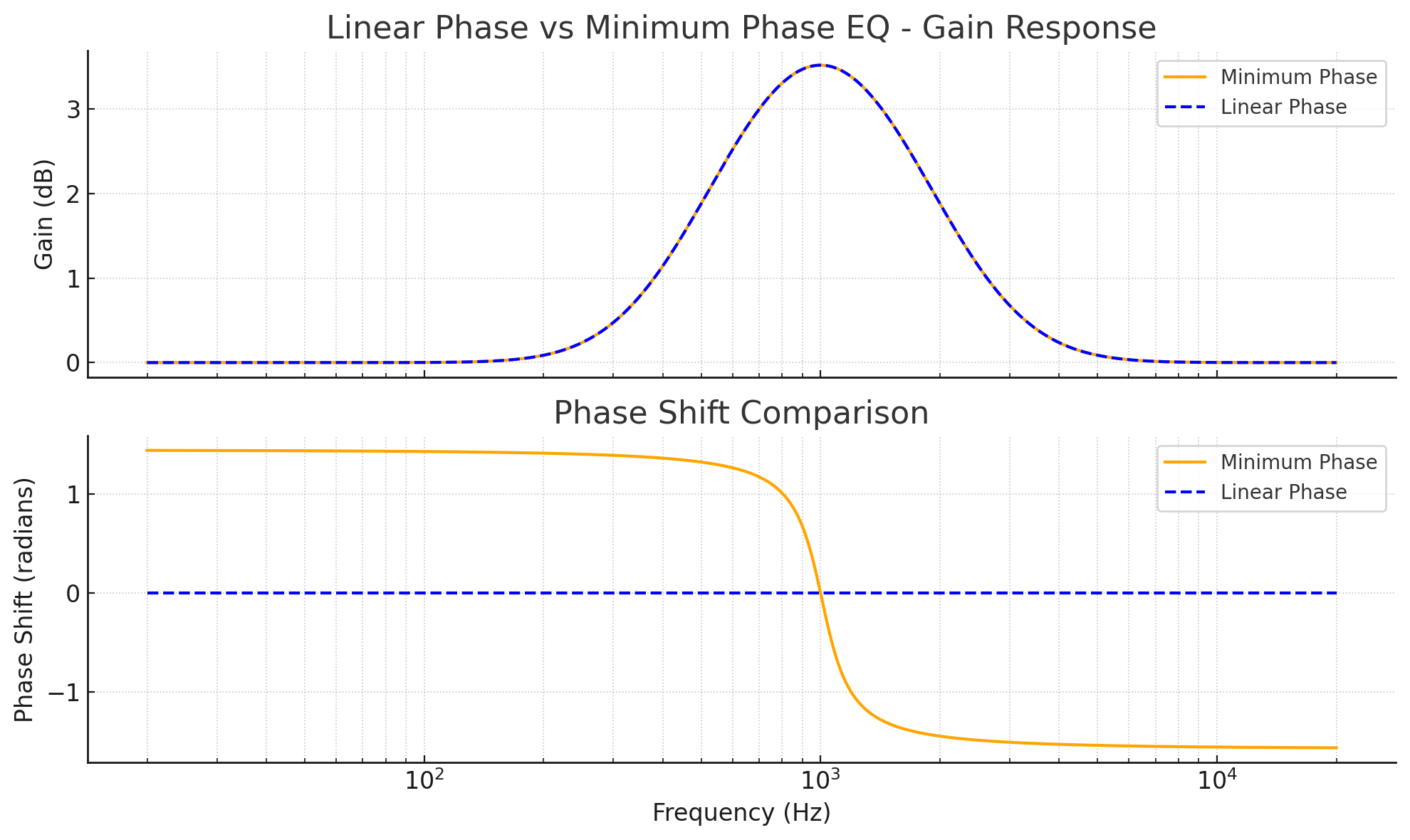

Linear Phase EQ

Linear phase EQ maintains phase alignment across all frequencies, meaning it doesn’t shift the timing of specific bands when you apply a boost or cut. This makes it ideal for mastering or tasks where phase coherence is important, such as working with stereo mixes or bus groups.

The downside is that it introduces latency and sometimes causes pre-ringing, which can make it less suitable for real-time monitoring or fast transients like drums.

Minimum Phase EQ

Minimum phase EQ behaves more like traditional analog EQs. It shifts phase in a way that’s more natural to the ear, often resulting in a smoother and more musical sound.

Most analog-modeled plugins use this type of EQ because it mirrors how classic hardware behaves. It’s preferred during mixing when slight phase shifts aren’t a problem or even add character.

Dynamic EQ

Dynamic Equalizer combines equalization with compression. Instead of applying a static boost or cut, it only adjusts a frequency range when the sound crosses a set threshold.

This makes it useful for taming harsh vocals, sibilance, or resonant tones that appear inconsistently. It’s more transparent than multiband compression and allows precise control over problematic frequencies without affecting the rest of the audio.

Parallel EQ

Parallel Equalizer involves blending the processed EQ signal with the original unprocessed one. This lets you apply more extreme tone-shaping while keeping the dynamics of the original track intact.

It’s often used to brighten vocals or add punch to drums without making the mix sound overprocessed.

Common EQ Mistakes to Avoid

Common EQ mistakes can make a mix sound worse instead of better. One of the most frequent issues is over-boosting. While it may seem like a good way to bring out detail, too much gain in one frequency range can make the audio harsh or artificial.

Another problem is making EQ decisions while soloing a track. What sounds great on its own may clash with the full mix. Always adjust the equalizer while listening to the entire arrangement.

Using too many narrow cuts can also backfire. It may clean up individual elements, but it often results in a hollow or unnatural tone, especially if applied across several tracks.

Finally, many engineers skip the essential step of referencing. It’s important to check how a mix sounds on different speakers and in various environments. Without this, EQ decisions may not translate well outside the studio.
