DAC (Digital-to-Analog Converter)

---

What is DAC (Digital-to-Analog Converter)?

A DAC, or Digital-to-Analog Converter, is a device that transforms digital audio data into analog signals. Every time you stream music, play a CD, or watch a video, a DAC turns binary data into electrical signals your speakers or headphones can use.

DACs are essential in modern playback systems. Without them, digital audio formats like MP3, WAV, or FLAC would remain inaudible. DACs sit between your source (like a smartphone or streamer) and output (such as headphones or speakers).

The technology has evolved over the decades. Early CD players in the 1980s had basic DAC chips. Today’s models offer high-resolution performance with better fidelity, dynamic range, and noise suppression.

Core Technical Principles

Digital-to-analog converters (DACs) work by transforming digital audio data back into continuous analog signals we can hear. To do this effectively, they follow certain principles that ensure audio stays clear, detailed, and true to the original recording.

Digital-to-Analog Conversion Process

The conversion process starts by reconstructing a smooth waveform from separate digital samples. This is called sampling reconstruction, and it connects each recorded point to form a continuous sound wave.

Bit depth, also known as quantization resolution, defines how many steps are used to measure loudness. A higher bit depth means more detail and less noise, which is why professional audio often uses 24-bit or more.

According to the Nyquist theorem, the sample rate must be at least twice the highest frequency we want to capture. That’s why CD-quality audio uses 44.1kHz – to cover the full range of human hearing up to about 20kHz. This prevents unwanted distortion known as aliasing.

Key Performance Metrics

Several numbers help describe how well a DAC performs. Bit depth affects how much dynamic range the audio has, from the quietest to the loudest sounds. Sample rate impacts how well it reproduces high frequencies.

Other critical specs include Total Harmonic Distortion plus Noise (THD+N), which measures unwanted changes to the sound, and Signal-to-Noise Ratio (SNR), which shows how much cleaner the music is compared to background hiss. Higher values in these metrics mean clearer and more accurate audio playback.

These metrics determine how accurate and clean the audio signal will be.

DAC Architecture Types

Digital-to-analog converters also differ in how they’re built, not just by price or brand. The internal architecture plays a big role in how sound is processed, shaped, and ultimately delivered to your ears.

Chipset Designs

Delta-Sigma DACs are the most common architecture in consumer electronics. They work by oversampling the input signal and using noise-shaping to move unwanted distortion outside the range of human hearing. These DACs are efficient, compact, and cost-effective, which makes them ideal for smartphones, laptops, and home audio gear.

On the high-end side, R-2R ladder DACs use a series of precise resistors to convert digital values into voltage. This method avoids the noise-shaping tricks of Delta-Sigma designs, resulting in a more direct, analog-like sound. Audiophiles often prefer R-2R DACs for their depth and realism, even though they are more expensive and harder to produce.

Implementation Formats

Most DACs under $1,000 use integrated circuit (IC) chips, such as the ESS Sabre or AKM Velvet Sound series. These chips balance performance and affordability while offering features like high dynamic range and low distortion.

At the premium level, companies like MSB Technology build DACs using discrete components – each part is selected and tuned by hand. This allows for more control over performance but adds to the cost. Other brands like Chord use FPGA (Field-Programmable Gate Array) chips, which allow for completely custom digital processing without relying on off-the-shelf DAC chips.

Critical Components

Inside a DAC, several parts work together to ensure clean, accurate sound. Two of the most important are the internal clocking system and the analog output stage, both of which shape the final audio quality.

Clocking Systems

Every DAC relies on a timing system, or “clock,” to keep digital data aligned as it’s converted to analog. If the timing wobbles, even slightly, it introduces jitter, a form of distortion that can blur sound detail or smear transients. Reducing jitter is key to preserving timing accuracy and overall clarity.

Some premium DACs use extremely stable reference clocks, including atomic clocks, to achieve ultra-low jitter. More commonly, systems use Phase-Locked Loop (PLL) or Asynchronous Sample Rate Conversion (ASRC) to sync incoming audio data with the DAC’s internal clock. These methods smooth out timing mismatches between the source device and the DAC.

Analog Output Stages

Once the digital signal becomes analog, it needs to be amplified and shaped before reaching your headphones or speakers. Most DACs use op-amp-based circuits, which are compact, consistent, and cost-effective. They offer low noise and precise performance across a wide frequency range.

In contrast, some high-end DACs use vacuum tube stages to introduce gentle harmonic coloration, which some listeners describe as warm or musical. Others use transformer-coupled outputs to add isolation, reduce ground noise, and block interference, especially helpful in complex audio systems. These variations influence the sound signature and character of the final output.

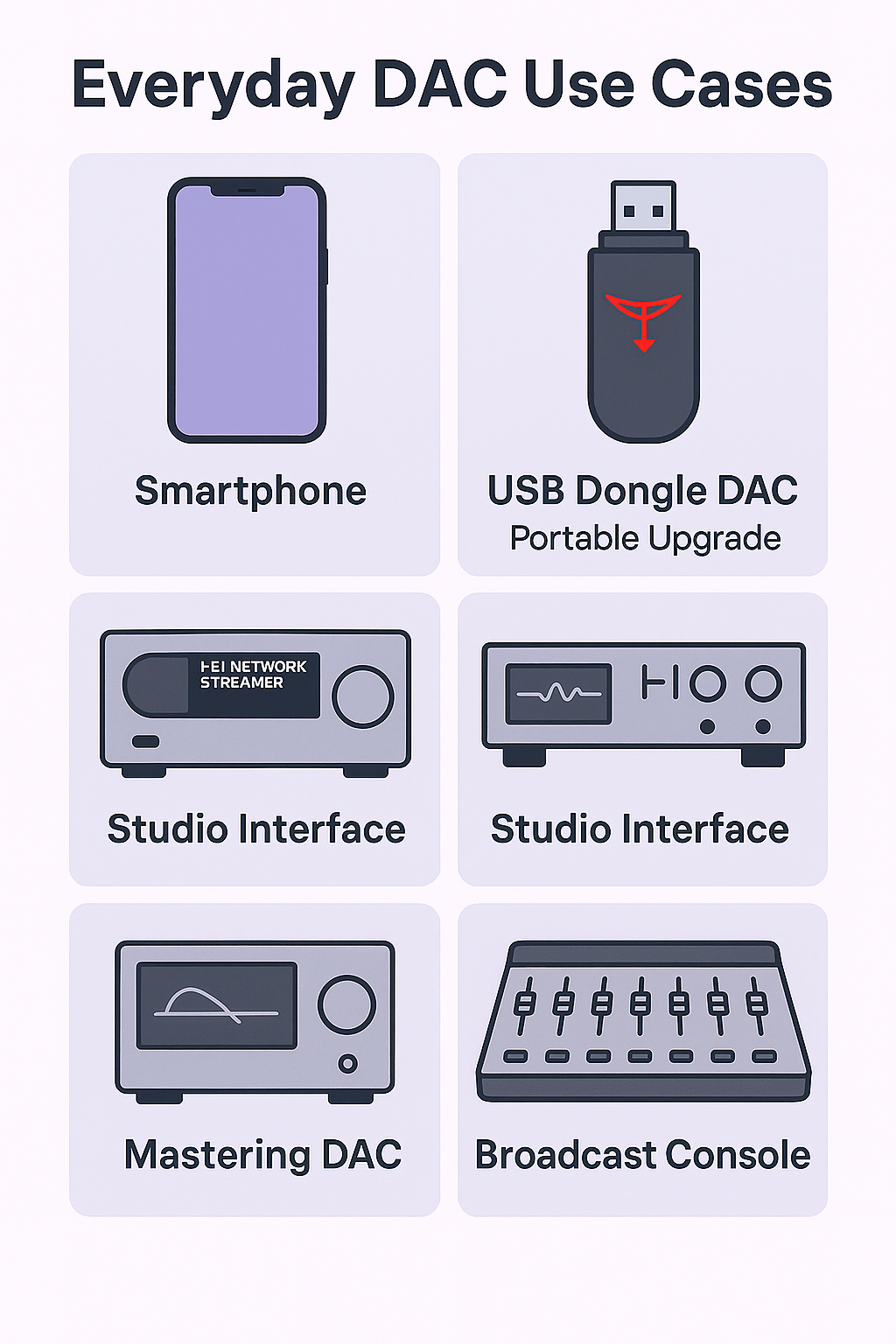

DAC Applications in Audio Systems

Digital-to-analog converters are used in nearly every audio system where digital content needs to be heard through speakers or headphones. From casual listening to studio production, DACs serve different roles depending on performance needs and design priorities.

Consumer Audio

Many smartphones include built-in DACs to handle music playback, voice calls, and streaming. Some high-end models, like those using Qualcomm Aqstic, support high-resolution audio formats. These chips convert digital files to analog signals that can drive wired headphones or internal speakers.

For better sound quality, users often turn to USB dongle DACs. Compact devices like the AudioQuest DragonFly connect to laptops or phones and offer a noticeable upgrade in clarity, dynamic range, and detail.

Streaming hubs like the Bluesound Node feature built-in DACs that process digital music from local libraries or streaming services. These devices connect to powered speakers or amplifiers and serve as central playback units in modern home audio setups.

Professional Environments

In studios, DACs are built into audio interfaces that connect microphones, instruments, and monitors. Units like the Apogee Symphony I/O are trusted for critical recording and mixing work because of their low latency and precise conversion.

During mastering, engineers use ultra-accurate DACs like the DCS Vivaldi to hear every nuance in a track. These converters aim to deliver transparency so no coloration alters the final output.

In live or broadcast settings, mixing consoles like the Lawo mc²56 include real-time DACs that turn digital feeds into balanced analog outputs for speaker systems or airwaves.

High-End Audio Considerations

In high-end systems, even small details can affect sound quality. Premium DACs focus on power handling, noise control, and electrical isolation to ensure every part of the audio signal is clean and accurate.

Power Supply Design

The power supply feeds every part of a DAC, so its design directly affects performance. Linear power supplies are often used in high-end gear because they deliver a stable current with very low noise. They rely on transformers and regulators to smooth out voltage, which reduces interference and improves clarity.

Switching power supplies are smaller and more efficient, but they can introduce high-frequency noise if not carefully filtered. Some DACs avoid these risks by using battery power, which cuts out electrical interference from the wall altogether. Others use supercapacitors that can release quick bursts of energy to handle sudden peaks in the audio signal, improving dynamics and speed.

Grounding & Shielding

Controlling noise is essential in precision audio. Star grounding layouts connect all ground paths at a single point, reducing the chance of ground loops that create hum. This design helps keep the noise floor low and the signal path quiet.

Shielding is also important. Many high-end DACs use Faraday cages, metal enclosures that block outside interference, to protect sensitive circuits. Galvanic isolation further separates the digital and analog stages, preventing electrical noise from one part of the system from leaking into the other. Together, these features help maintain a black background and reveal subtle details in music.

Measurement vs. Perception

DAC performance isn’t judged by numbers alone. While measurement tools can quantify accuracy, listeners often rely on personal impressions shaped by system setup, room acoustics, and their own hearing.

Benchmark Testing

Lab tests help engineers identify how well a DAC processes complex signals. Tools like the Audio Precision APx555 measure intermodulation distortion (IMD), which shows how the DAC handles multiple frequencies playing at once. A low IMD value means fewer unwanted artifacts when instruments and vocals overlap, preserving clarity and definition.

Another useful method is multitone analysis, which feeds the DAC with a mix of signals designed to simulate real music. This reveals how cleanly the unit handles dense, layered audio. Engineers use these results to assess transparency, dynamic response, and whether subtle details are lost or altered during playback.

Subjective Evaluation

Even with perfect test results, listeners may hear differences between DACs. Blind testing helps remove visual and brand-based bias, forcing people to focus on what they actually hear. These tests often reveal that small variations in tone, staging, or smoothness matter more than numbers suggest.

Some users claim DACs improve after a break-in period, although scientific evidence is limited. Other factors like cable shielding, power quality, and physical placement can also affect perceived performance. In high-end audio systems, small details and personal taste often shape the final judgment more than any measurement.

Interface Protocols

DACs rely on digital interfaces to receive audio signals from other devices. These connections can be wired or wireless, and each has its own benefits, limitations, and use cases depending on system needs.

Wired Connections

USB audio is the most common interface for modern DACs. It supports high sample rates and bit depths and is compatible with many operating systems and devices. Versions like UAC 2.0 and 3.0 improve bandwidth and reduce latency, making them ideal for both casual listening and studio work.

S/PDIF is another popular option found in home theater and Hi-Fi gear. It uses either optical cables (TOSLINK) or coaxial cables and generally offers lower jitter than USB. However, it often caps out at lower resolution formats. I2S is a more advanced connection type originally used inside devices but now sometimes exposed through HDMI ports. It offers high bandwidth and low noise but requires strict compatibility between components.

Wireless Standards

Bluetooth audio has improved significantly with codecs like LDAC and aptX HD, which allow near-lossless playback over short distances. While not perfect for critical listening, it’s useful for portable and mobile use.

WiSA (Wireless Speaker and Audio) is designed for high-resolution, low-latency sound transmission in home systems. It connects DACs directly to powered wireless speakers. Apple’s AirPlay 2 is limited to CD quality but integrates smoothly across iPhones, iPads, Macs, and HomePods, making it ideal for casual users within the Apple ecosystem.

Future Technological Developments

The next generation of DACs may look and behave very differently from what we know today. As research advances, new materials, computing models, and sustainability goals are shaping how digital audio is processed and delivered.

Emerging Technologies

Photonics-based DACs are being explored for their ability to use light instead of electricity to transmit data. This could reduce distortion and noise to levels beyond current limits. While not yet available to consumers, the concept offers a glimpse of extremely high-performance conversion in the future.

Quantum DACs are still theoretical, but the idea is to use quantum states to represent sound data at levels far beyond traditional bit depth. Similarly, neuromorphic digital signal processing mimics the way the brain interprets sound. This could allow DACs to adapt to changing acoustic environments or playback content differently based on context.

Market Trends

Today’s DACs are evolving to fit into modern streaming setups. Many now include built-in platforms that support Spotify, TIDAL, and internet radio without needing a separate device. At the same time, companies are adopting more eco-friendly approaches, using recyclable casings and efficient power supplies to reduce environmental impact.

Another shift is toward modular DACs, where users can swap out specific parts like output stages or USB modules. This lets people keep their core device while upgrading over time, adding value and extending lifespan in a fast-moving tech market.
