Compression (Dynamic Range Reduction)

---

Definition & Core Concept

Compression is a tool used in audio production to make the volume of a sound more even. It does this by turning down the loudest parts of the audio once they pass a certain level, called the threshold. The goal is to reduce the gap between quiet and loud parts so the sound feels more controlled.

One of the most common uses of compression is to tame sudden volume spikes. For example, a vocal track might have sharp “P” sounds, or a snare drum might hit too hard. Compression smooths those peaks so they don’t jump out uncomfortably in the mix.

It’s also used to make tracks sound louder overall without distorting them. By keeping peaks in check, engineers can raise the overall volume without causing clipping.

Finally, compression helps different tracks in a mix feel like they belong together. By shaping dynamics across instruments and vocals, it creates a tighter, more unified sound. Whether you’re producing soft acoustic music or hard-hitting electronic beats, compression is a core part of professional mixing and mastering.

How Compression Works: The Science

Compression operates using a set of adjustable parameters that define when and how gain reduction is applied. Each parameter influences the compressor’s behavior and sonic character.

Key Parameters

Visualization

A gain reduction meter shows how much the compressor is turning down the signal in real time. This helps the engineer understand how actively the compressor is working during playback.

A waveform before and after compression makes the effect easier to spot. Loud peaks are visibly reduced, while quieter sections appear more even, often with a slight volume lift.

Input and output graphs display the compression curve, showing how the signal is shaped as it crosses the threshold. These curves reflect the settings for ratio and knee, offering a visual guide to how aggressively compression is applied.

When these visual tools are used properly, they help audio engineers fine-tune compression settings to control dynamics while still keeping the natural character and detail of the sound intact.

Types of Compressors & Their Sonic Signatures

Different compressor designs each have a unique sound and behavior. Picking the right type depends on what you’re working on and whether you want a clean sound or something more colorful and character-driven.

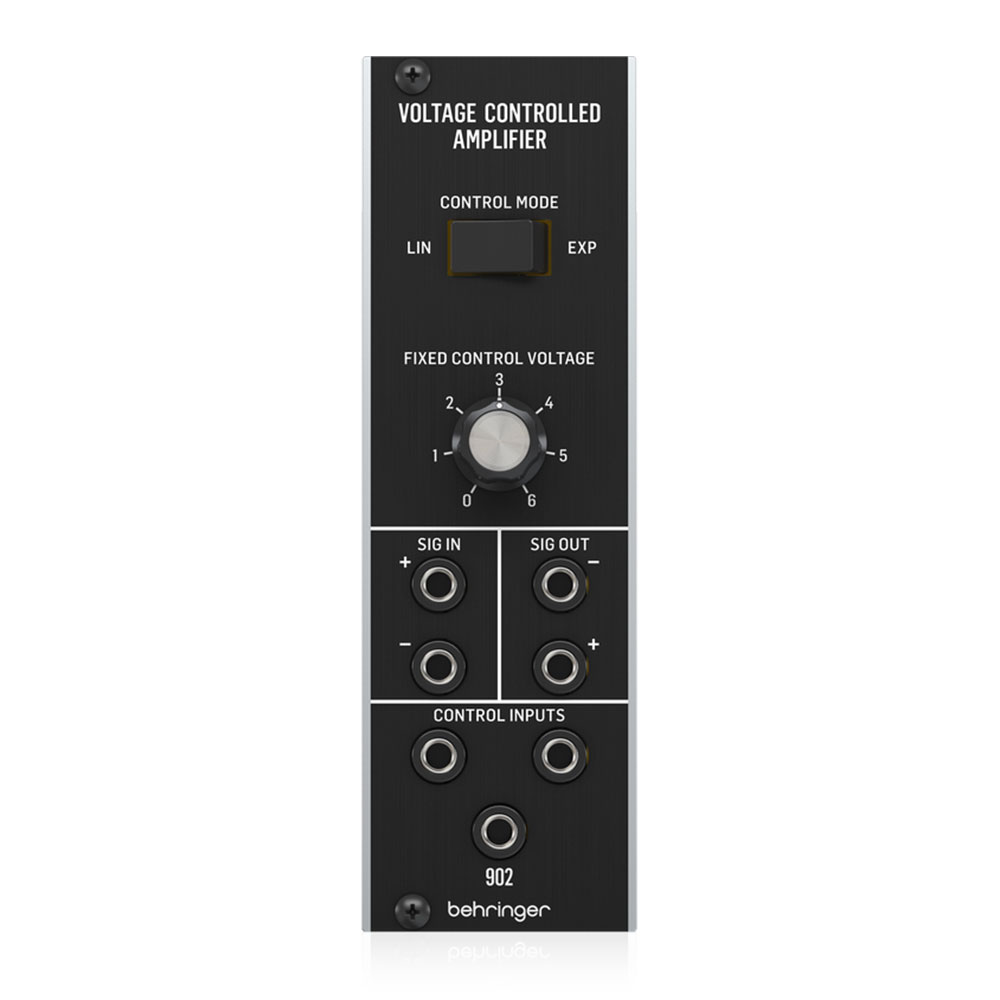

VCA (Voltage-Controlled Amplifier)

VCA compressors are known for being fast, clean, and very precise. They’re great when you need tight control, like on drum busses or full mixes. The dbx 160 and SSL G Bus Compressor are popular examples, often used to add punch and glue without adding extra color.

Optical (Opto)

Optical compressors use a light sensor to control the gain reduction, which gives them a smooth and musical response. They react more slowly, making them ideal for vocals and bass where a natural, gentle compression is preferred. Classics like the LA-2A and Avalon VT-737sp are go-to choices for warmth and transparency.

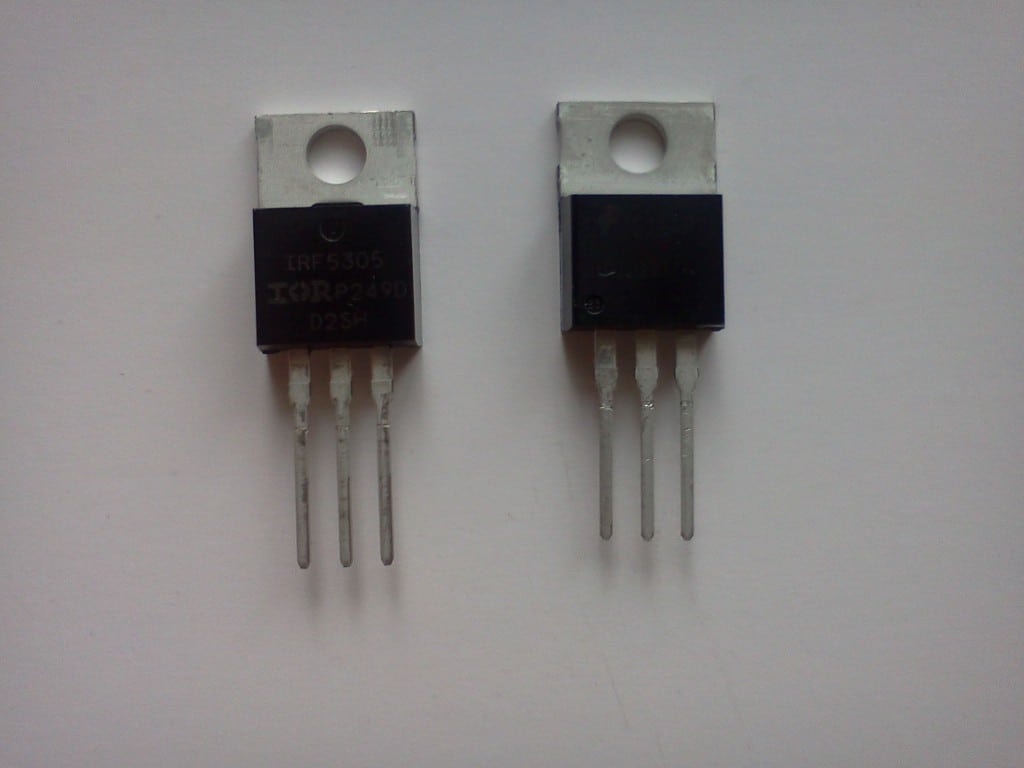

FET (Field-Effect Transistor)

FET compressors have a bold, punchy character and respond very quickly to transients. This makes them great for snare drums, aggressive vocals, or adding energy with parallel compression. The UREI 1176 is a legendary model that adds attitude and presence to anything it touches.

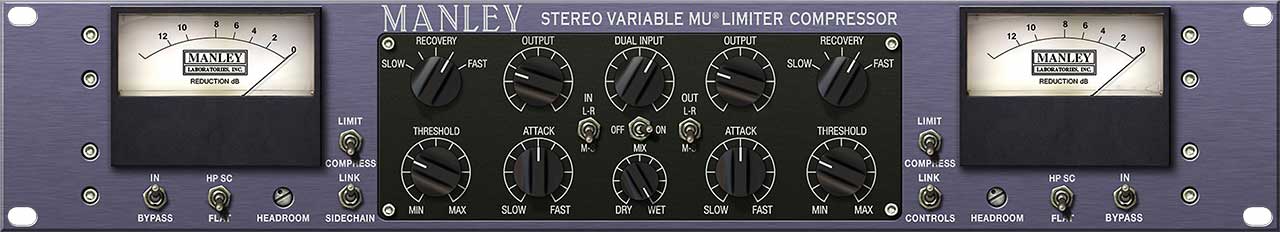

Variable-Mu (Tube-Based)

These compressors use tubes to control gain, which adds warmth and harmonic richness. They’re often used on strings, full mixes, or during mastering when a vintage tone and subtle glue are needed. Examples include the Fairchild 670 and Manley Vari-Mu.

Digital / Plugin-Based

Digital compressors offer maximum flexibility and precision. Many can emulate analog styles or provide ultra-transparent control for mastering. Tools like FabFilter Pro-C 2 and Waves C1 let engineers shape dynamics with incredible detail.

Understanding the sonic traits of each type helps you match the compressor to the sound you’re aiming for.

Common Applications

Compression is applied differently depending on the audio source, genre, and production goal.

Vocals

On vocals, compression helps keep the performance smooth and present. It controls plosives and evens out the loud and soft parts so the voice stays consistent in the mix. A ratio around 4:1 with medium attack and release works well. Opto or digital compressors are great for subtle, transparent control, while FET compressors can add some extra energy and character when needed.

Drums

Drums often need compression to shape their attack and control how long they ring out. For snare and kick, a fast attack can tighten the sound and add punch. Room mics usually benefit from slower attack times to keep their natural feel. VCA and FET compressors are ideal because they react quickly and give strong control over transients.

Bass

Bass lines can vary a lot in volume, especially with fingerstyle or slap playing. Compression evens out the level and keeps the low end tight and steady. A ratio between 3:1 and 6:1 with a slow release and medium attack helps maintain warmth without squashing the tone. Opto and VCA compressors both work well here.

Mix Bus

On the mix bus, compression glues everything together with a light touch. You typically use a low ratio like 1.5:1, a soft knee, and only reduce the gain by 1 to 2 dB. VCA or Variable-Mu compressors are commonly used because they add cohesion without changing the mix’s character.

Mastering

In mastering, compression is used carefully to increase loudness while preserving clarity. A high threshold and low ratio prevent over-compression, and slow attack and release times help keep transients intact. Digital and Variable-Mu compressors are often chosen for their precision and tone.

Compression Techniques

Beyond standard insert compression, several techniques offer more flexibility and control when shaping dynamics.

Parallel Compression

Parallel compression blends a heavily compressed version of a signal with the original, unprocessed track. This approach gives you the benefits of strong compression, like added punch and density, without making the sound feel over-squashed or lifeless.

It’s commonly used on drums, vocals, and full mixes to enhance presence and energy while keeping natural dynamics intact. The typical setup involves sending the track to an aux channel, applying heavy compression, and then mixing it in with the dry signal to taste.

Sidechain Compression

Sidechain compression allows one sound to control the compression of another. For example, you can make the bass duck every time the kick drum hits – this keeps the low end from getting muddy and creates a rhythmic “pumping” feel popular in electronic music.

This technique is also useful in voice-over work, where background music automatically lowers when someone speaks. Most modern DAWs like Ableton, Logic, and Pro Tools make sidechaining easy to set up with built-in routing options.

Multiband Compression

Multiband compression targets specific frequency ranges instead of compressing the full spectrum. This is ideal when you want to fix problems, like harsh mids or booming lows, without affecting the rest of the sound.

It’s commonly used in mastering, vocals, and bass-heavy instruments to balance tone and clean up the mix. Tools like FabFilter Pro-MB or iZotope Ozone Dynamics offer advanced control and are often used in professional workflows.

Compression vs. Limiting vs. Saturation

Compression shares functions with other dynamic processors, but differs in behavior and use case.

While compression shapes dynamics, limiting acts as a hard ceiling for peaks, and saturation enhances harmonics and perceived warmth.

Historical Evolution

Compression has evolved alongside recording technology, shifting from basic voice control to a powerful creative tool used across every stage of audio production.

In the 1950s, compressors like the RCA BA-6A and LA-2A were designed for radio broadcasts. They helped level out speech volumes and introduced optical compression, which became known for its smooth, musical quality.

By the 1960s and 70s, compressors like the UREI 1176 brought a more aggressive and responsive sound. Engineers started using compression creatively, adding energy to vocals and drums in rock and pop music.

During the 1980s, digital compression made its way into studios. Devices like the dbx 160 delivered fast, clean compression and became staples in mixing consoles and rack units.

From the 2000s onward, software plugins expanded possibilities even further. Tools from Waves, FabFilter, and iZotope replicated analog gear while introducing smart features and AI. Today, compression is essential across music, film, broadcasting, and streaming.
