Audio Jack: Types, Functions, and Signal Paths

---

Definition

A jack is a female audio connector designed to receive a plug (the male counterpart). It serves as a standardized interface for transmitting analog audio signals between devices. Audio jacks are found in musical instruments, headphones, mixing consoles, audio interfaces, and consumer electronics.

Jacks are essential for live sound setups, studio recording, and everyday audio playback. They allow quick and reliable connections while supporting a range of signal types and equipment formats.

Historical Evolution

The audio jack was first developed in the late 1800s for use in telephone switchboards. Operators connected calls by manually plugging cables into jacks, which gave rise to the name “phone jack.” The design was simple, effective, and durable – qualities that helped it spread beyond telecom use.

By the mid-20th century, audio jacks became standard in consumer electronics and musical equipment. The 6.35 mm (1/4″) jack was widely adopted for guitars, amplifiers, and studio gear because of its sturdy build and consistent signal performance.

Later, the 3.5 mm and 2.5 mm versions appeared in compact devices like cassette players, camcorders, and mobile phones. While smartphones now favor USB-C or wireless, the 3.5 mm jack remains essential in audio production, DJ gear, and professional monitoring setups.

Terminology & Components

A jack is the stationary part, usually a female socket built into gear, like mixers, amplifiers, or interfaces. It stays fixed in place and receives the plug during use.

A plug is the movable part, typically male, attached to a cable. It fits into the jack to complete the electrical circuit. Plugs come in different formats, such as TS, TRS, or XLR, and are chosen based on the type of signal and connection required.

Inside a jack, you’ll find conductive contacts designed to match the tip, ring, and sleeve structure of standard plugs. These contacts carry the signal through precise metal points that align with the inserted plug.

Insulators inside the jack prevent short circuits by separating these contacts. They’re usually made of plastic or another non-conductive material that resists heat and pressure over time.

Many jacks also include shielding – metal or foil components that protect the signal path from external noise or electromagnetic interference. This improves audio clarity and consistency in both consumer and studio-grade equipment.

Types of Jacks by Size

Jacks are categorized by the diameter of the plug they accept, and each size has developed its role across consumer and professional devices. The most common sizes are 6.35 mm, 3.5 mm, and 2.5 mm. Understanding these differences is important when choosing or troubleshooting audio connections.

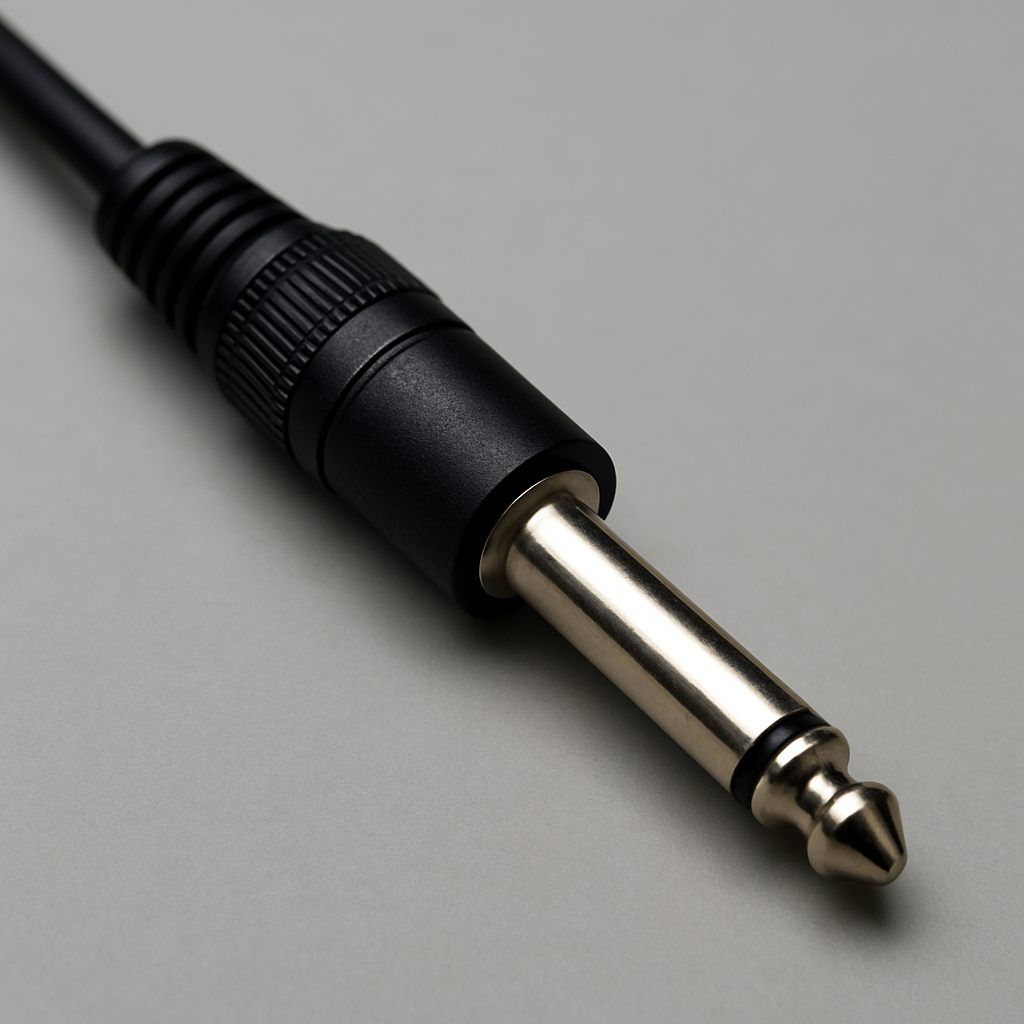

The 6.35 mm jack, often called a quarter-inch or phone jack, is widely used in electric guitars, amplifiers, mixers, and studio hardware. It supports both mono and stereo signals and is built for durability in live and studio environments.

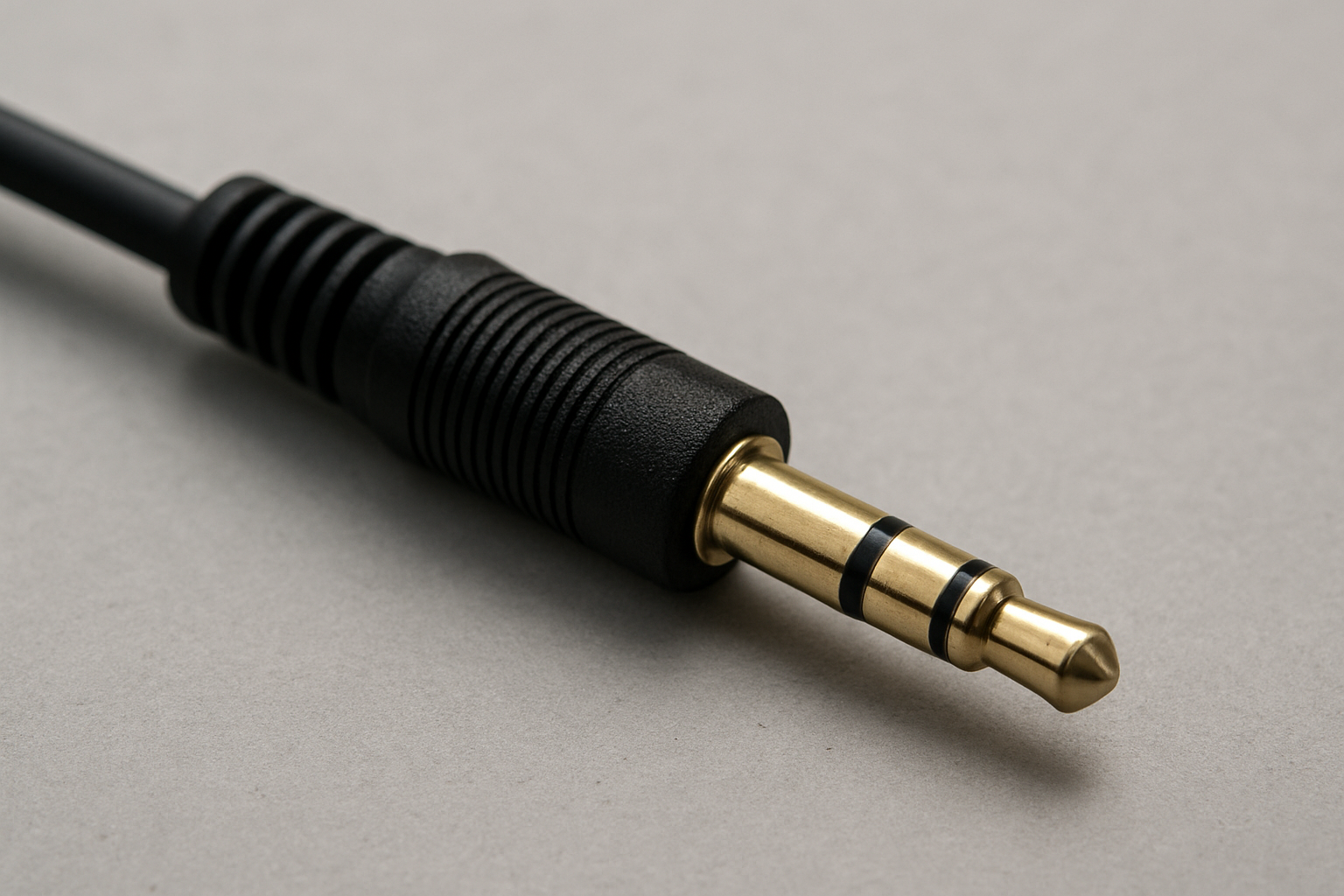

The 3.5 mm jack, also known as the mini-jack, is the most common size in consumer electronics. It’s found on laptops, phones, portable recorders, and many headphones. Its small size makes it ideal for compact devices, but it’s more fragile than the larger version.

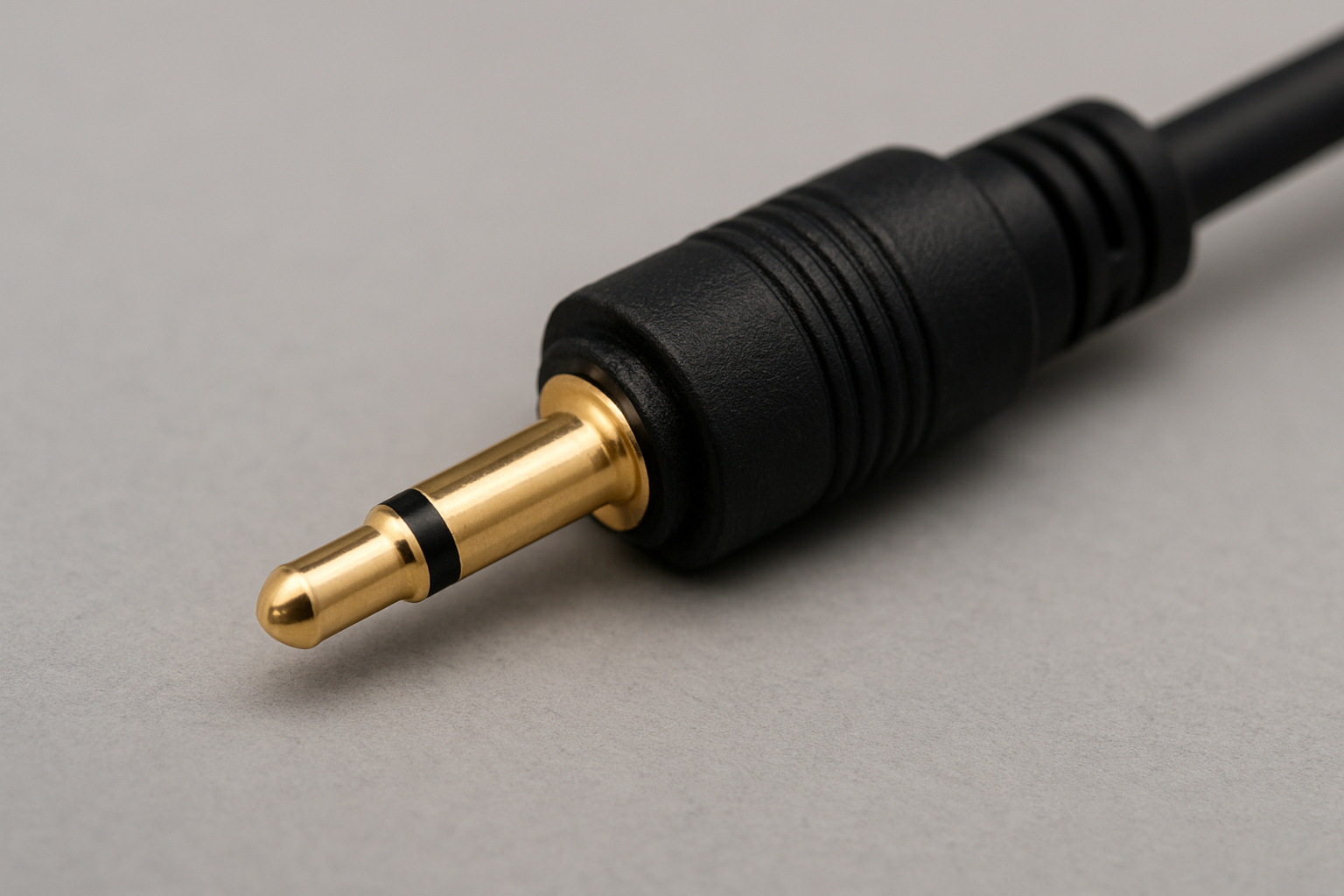

The 2.5 mm jack, or sub-mini jack, was once popular in mobile headsets and small microphones. Today, it’s rarely used, with manufacturers favoring 3.5 mm or wireless alternatives.

Each jack size affects compatibility, signal strength, and physical durability. Users should match plug and jack sizes exactly – using adapters only when necessary to avoid damage or noise.

When working across different formats, it’s important to know which jack fits your gear. Choosing the correct size ensures clean audio and long-lasting hardware performance.

Jack Configurations & Wiring

Audio jacks are designed with different internal layouts, called configurations. These determine how the jack transmits signals, how many channels it supports, and whether it reduces interference. The three most common types (TS, TRS, and TRRS) are used across both professional and consumer audio systems.

TS (Tip-Sleeve)

A TS audio jack has two parts: the tip and the sleeve. The tip carries the audio signal, while the sleeve provides the ground connection. This configuration is the simplest and is widely used for unbalanced mono signals.

You’ll often find TS plugs on instrument cables, especially those for electric guitars, basses, and some keyboards. The connection works well over short distances, such as between a guitar and a nearby amplifier.

However, TS cables are vulnerable to noise over longer runs. Since there’s no dedicated conductor to cancel interference, they can pick up hum or buzz from nearby power sources or electronic equipment.

TRS (Tip-Ring-Sleeve)

TRS connectors add a third contact, the ring, between the tip and the sleeve. This allows the cable to carry either a balanced mono signal or stereo audio using separate channels for left and right.

In a stereo configuration, the tip carries the left channel, the ring carries the right, and the sleeve is ground. These are common in headphone jacks and stereo line outputs on mixers or audio interfaces.

For balanced mono, the tip and ring carry positive and negative phases of the same signal, which helps cancel out noise picked up along the cable. This makes TRS ideal for longer studio or stage runs.

TRRS (Tip-Ring-Ring-Sleeve)

TRRS connectors have four segments, allowing for an additional channel beyond stereo audio. They are most often used in devices that combine headphones and a microphone in one plug.

The typical TRRS wiring sends the left channel through the tip, the right channel through the first ring, the microphone signal through the second ring, and ground through the sleeve. This layout is common in smartphones, tablets, and many gaming controllers.

Different manufacturers may use slightly different pin orders, so matching TRRS plugs and jacks correctly is important. A mismatch can cause the microphone to stop working, swap left/right channels, or result in distorted or missing audio.

Balanced vs. Unbalanced Jacks

Jacks can carry either balanced or unbalanced audio, depending on how they’re wired and what connectors are used. TS connectors support unbalanced signals, while TRS and XLR connectors are designed for balanced connections. The difference affects noise handling, cable length, and overall audio clarity.

Unbalanced connections use two wires: one for the signal and one for ground. They work fine over short distances but are more prone to picking up electrical noise. This is why they’re often found in guitars, consumer gear, and short patch cables.

Balanced connections add a second signal wire that carries an inverted version of the audio. At the receiving end, the system flips and recombines the signals, which cancels out noise. This makes balanced jacks ideal for professional setups, especially where cables run over long distances or pass near power sources.

Common Applications

Jacks appear in a wide range of audio systems, each suited for different roles. Understanding what each type does helps prevent setup issues and improves sound quality.

1/4″ TS Jacks are most commonly used for electric guitars, pedals, and basic instrument amplifiers. These mono connectors are ideal for unbalanced signals and are often found in live stage gear where short cables reduce interference.

1/4″ TRS Jacks are used in audio interfaces, mixers, and studio monitors. They carry balanced mono signals or unbalanced stereo signals, making them essential in professional audio setups to reduce noise over long cable runs.

3.5 mm TRS Jacks are standard on consumer devices like smartphones, laptops, and MP3 players. They connect most wired headphones and basic microphones, offering stereo audio in a compact form.

3.5 mm TRRS Jacks are designed for headsets with both headphone and microphone functions. These are widely used in mobile phones, tablets, and gaming controllers, enabling audio input and output through a single port.

Jacks in Professional Audio

In professional audio environments, jacks serve not just as connectors but as tools for managing complex signal paths. Studios and venues rely on them for flexibility, especially when fast rerouting or hardware integration is needed without rewiring the entire setup.

Patchbays often use TT (Tiny Telephone) jacks to condense dozens of channels into a single panel. These are common in studios, where engineers can manually reroute signals between preamps, compressors, and interfaces quickly and without signal degradation.

Insert jacks, usually TRS, allow mixers to send audio out to an external processor and receive it back through the same cable. Switched jacks are used to break or reroute signals when a plug is inserted, such as muting speakers when headphones are connected. This makes jacks essential for dynamic control in professional systems.

Common Issues & Troubleshooting

Jacks are built to handle repeated use, but over time, they can develop problems that affect sound quality. Dust, oxidation, and physical stress are common causes of failure, especially in gear that’s regularly moved or unplugged.

Intermittent audio usually points to dirty or oxidized contacts. A quick cleaning with contact-safe spray and a cotton swab often restores a stable connection. If the problem returns, the audio jack may need closer inspection for corrosion or internal damage.

Loose or wobbly connections can result from worn-out jack housings or bent internal contacts. In these cases, tightening rarely works long term – replacing the audio jack is often the most reliable fix.

Buzzing or humming may be caused by ground loop interference or unbalanced connections. Switching to balanced cables or using ground loop isolators can solve the issue. Mismatched plugs, such as inserting a TRS into a TS-only jack, can also lead to poor signal or channel dropout.

Jacks vs. Other Audio Connectors

Jacks are common in both consumer and professional audio because they’re versatile and widely supported. They handle balanced and unbalanced signals, come in several sizes, and are easy to replace or adapt. This makes them a go-to solution for many setups.
