What is HDMI?

HDMI, or High-Definition Multimedia Interface, is a widely used standard for transferring both high-quality video and audio through a single cable. It was created in 2002 to replace older connections like VGA, Component Video, and DVI, which often required separate cables for audio.

HDMI makes it easier to connect TVs, monitors, game consoles, projectors, and sound systems. It supports high-definition formats including 1080p, 4K, and even 8K, along with surround sound and advanced audio formats.

Unlike analog signals, HDMI transmits uncompressed digital data, which means better picture and sound without interference. Its plug-and-play design also reduces setup complexity, making it the default choice for modern home theaters and professional AV equipment.


HDMI Specifications & Versions

HDMI (High-Definition Multimedia Interface) has evolved to support better video quality, more audio channels, and new features for home theaters, gaming, and professional setups.

Version Evolution

HDMI has undergone several updates to support higher resolutions, increased bandwidth, and advanced features:

HDMI 1.0, released in 2002, supported video resolutions up to 1080p at 60Hz. It was the first major step toward replacing older analog connectors with a single digital cable for both audio and video.

HDMI 1.4, introduced in 2009, added useful features like Ethernet over HDMI, which allowed internet sharing between devices, and Audio Return Channel (ARC), which let sound travel from a TV back to a sound system. It also allowed 4K video, but only at 30Hz.

HDMI 2.0 came out in 2013 and improved on 4K support, raising it to 60Hz. It also introduced High Dynamic Range (HDR) for better contrast and color, and expanded audio support up to 32 channels, useful for immersive surround systems.

HDMI 2.1, released in 2017, supported 8K resolution at 60Hz and 4K at 120Hz, making it ideal for next-gen gaming and high-end video systems. It also introduced Variable Refresh Rate (VRR) and Enhanced Audio Return Channel (eARC) for smoother visuals and better audio quality.

HDMI 2.1a, launched in 2022, added Source-Based Tone Mapping (SBTM), which helps adjust HDR content more accurately depending on the source device’s capabilities.

Cable Types & Certification

HDMI cables are categorized based on their performance capabilities:

Standard HDMI cables, also called Category 1, are designed for older systems and support video up to 1080i at 60Hz. These are best for basic HD setups without advanced features.

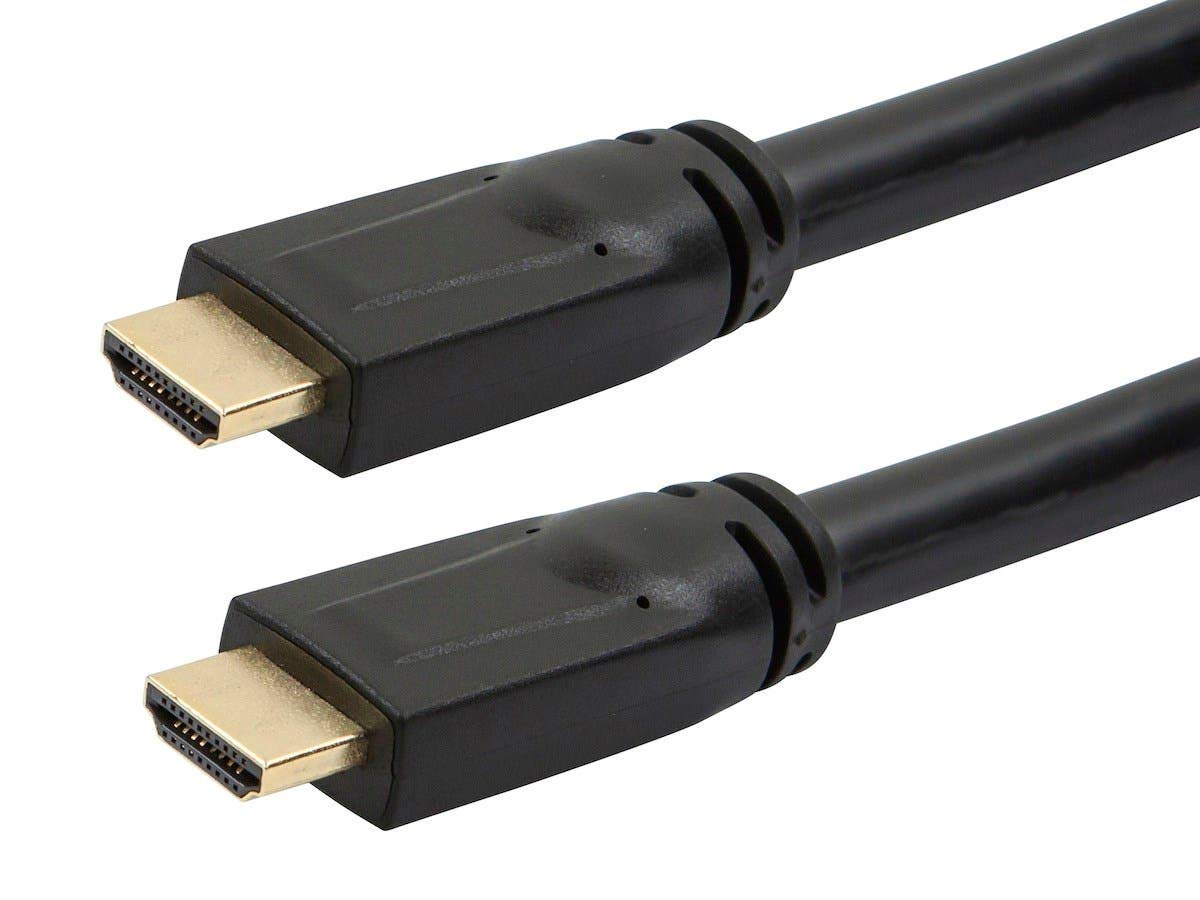

Standard HDMI cable designed for 1080i at 60Hz, suitable for basic HD video without advanced features

High Speed HDMI cables, or Category 2, support full HD (1080p), 3D video, and 4K at 30Hz. They are more widely used in modern setups and offer better performance than standard versions.

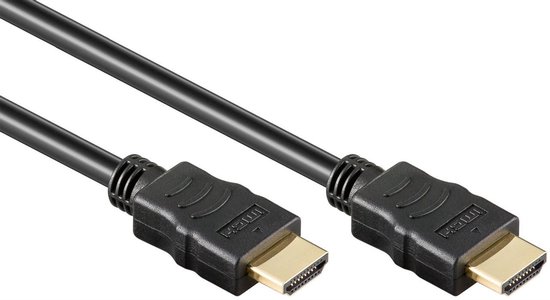

High Speed HDMI cable supporting 1080p, 3D video, and 4K at 30Hz for modern home theater use

Premium High Speed HDMI cables are certified to handle 4K video at 60Hz with HDR. These cables are tested for low interference and consistent performance, making them ideal for UHD TVs and streaming boxes.

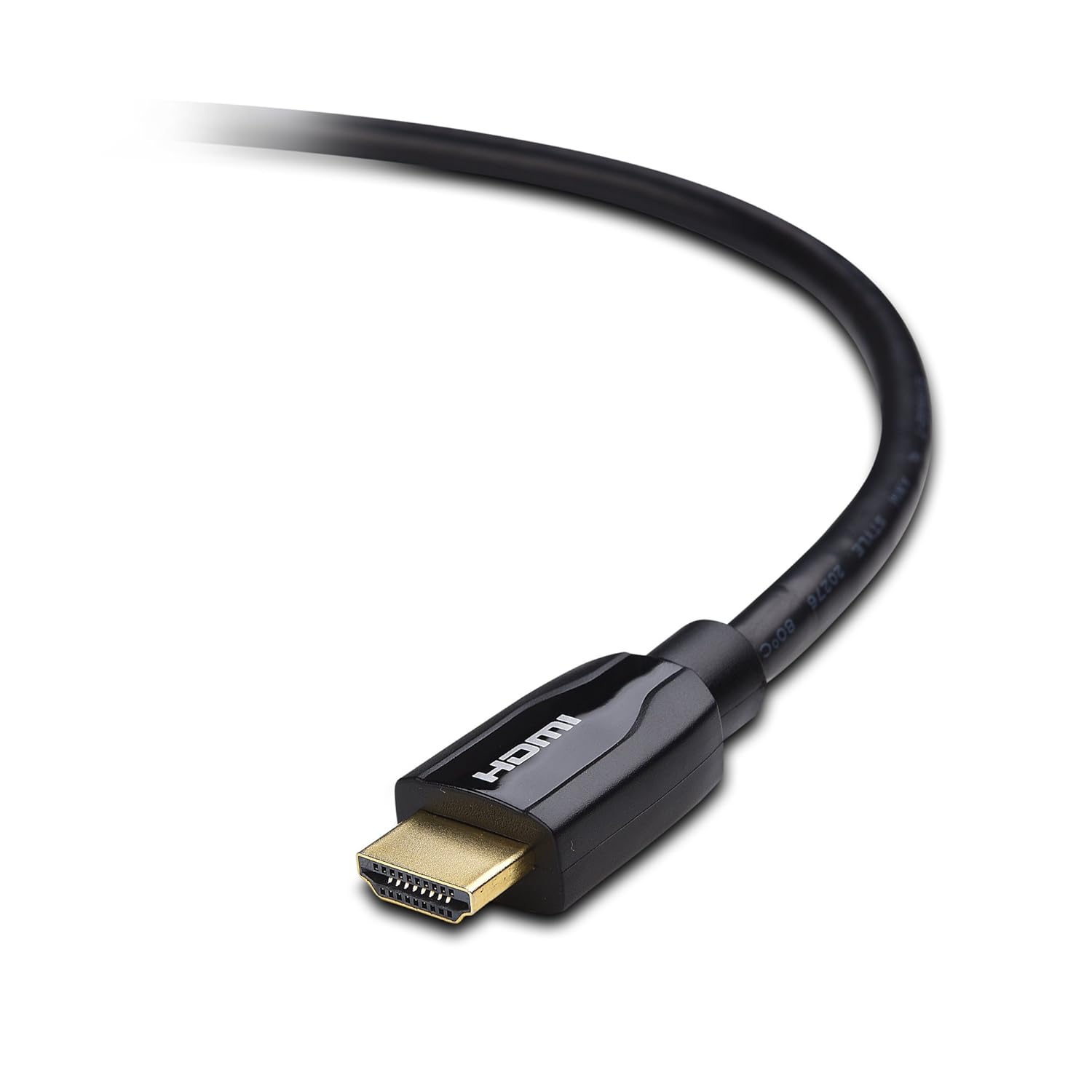

Premium High Speed HDMI cable with certification label, capable of 4K at 60Hz and HDR playback

Ultra High Speed HDMI cables are built for the latest HDMI 2.1 features, including support for 8K at 60Hz or 4K at 120Hz. They offer bandwidth up to 48Gbps and are required for advanced gaming consoles, top-tier displays, and future-proofed setups.

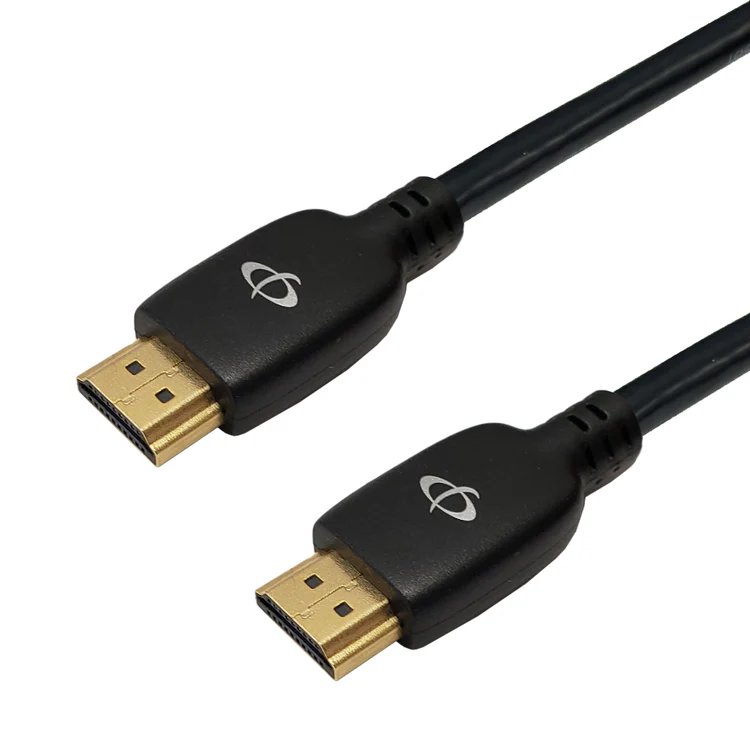

Ultra High Speed HDMI cable supporting 8K at 60Hz and 4K at 120Hz with 48Gbps bandwidth for HDMI 2.1 features

Technical Architecture

HDMI works through a combination of physical connectors and advanced data transmission methods that allow it to deliver both video and audio through a single cable with high quality and low signal loss.

Physical Layer

Type A (Standard) connectors are the most widely used. You’ll find them on TVs, monitors, gaming consoles, and home theater receivers. They’re the default choice for most home entertainment setups.

Type C (Mini) connectors are smaller and typically used on tablets and some slim laptops. They offer full HDMI functionality in a more compact form to suit portable devices.

Type D (Micro) connectors are even smaller than Mini HDMI. These are found on smartphones, handheld cameras, and other compact electronics where space is limited but HDMI capability is still needed.

Type E (Automotive) connectors are made for in-vehicle entertainment systems. They include locking mechanisms to prevent disconnection from vibration or movement while driving.

The 19-pin configuration includes:

  • Three Transition Minimized Differential Signaling (TMDS) data channels.
  • One TMDS clock channel.
  • Display Data Channel (DDC) for EDID and HDCP.
  • Consumer Electronics Control (CEC) line.
  • Hot Plug Detect (HPD) signal.

Data Transmission

HDMI transmits data using TMDS (Transition-Minimized Differential Signaling), which helps reduce signal errors by minimizing electromagnetic interference. This allows for cleaner, more reliable transmission, especially over longer cables or in setups with multiple devices.

It supports a range of color depths (8, 10, 12, and 16-bit), which helps create smoother gradients and more accurate color reproduction. This is especially important for high-end video editing, gaming, and UHD content where color precision matters.

HDMI is also compatible with different color formats, including RGB and YCbCr. It supports chroma subsampling modes like 4:4:4 for full color fidelity, 4:2:2 for professional video, and 4:2:0 for compressed formats such as streaming and Blu-ray playback.

This flexibility ensures HDMI can handle everything from basic HD signals to demanding 8K video with immersive multi-channel audio.


Audio Capabilities

HDMI carries not only video but also high-quality audio, making it a complete solution for home entertainment and professional systems.

Audio Formats

HDMI supports uncompressed audio like Linear PCM, which delivers up to eight channels at 192kHz for clean, high-fidelity sound. This format is ideal for music playback, gaming, and studio-quality audio transmission without data loss.

It also handles compressed formats such as Dolby Digital and DTS, which are widely used in DVDs, Blu-rays, and streaming platforms. These formats reduce file size while maintaining good audio quality, making them practical for consumer devices.

For those seeking lossless sound, HDMI can transmit Dolby TrueHD and DTS-HD Master Audio. These formats reproduce studio-master-quality soundtracks, often used in home theater setups and premium Blu-ray titles.

HDMI 2.1 expands this further by supporting Dolby Atmos and DTS:X. These advanced formats add spatial and height effects, delivering a more immersive listening experience through object-based audio.

Audio Return Channel (ARC/eARC)

ARC was introduced with HDMI 1.4 to simplify system wiring. It lets the TV send audio back to an AV receiver or soundbar through the same HDMI cable used for video. ARC supports formats like Dolby Digital and DTS, making it useful for watching TV apps with surround sound.

eARC, introduced in HDMI 2.1, increases the bandwidth to support uncompressed audio signals such as 5.1 and 7.1 channel PCM, along with advanced formats like Dolby Atmos. This upgrade ensures that audio quality is preserved when using built-in streaming apps or external media devices connected to your TV.


Video Features

HDMI supports a wide range of video formats, enabling everything from basic HD viewing to high-end gaming and 8K video playback.

Resolution Support

HDMI handles legacy resolutions such as 480i, 720p, and 1080p, making it compatible with older devices and content. These resolutions are still commonly found in DVDs, set-top boxes, and older media players.

It also supports modern standards like 4K at up to 120Hz, offering sharper images and smoother motion for video streaming, gaming, and UHD Blu-ray playback. This makes it ideal for TVs and monitors with high refresh rates.

HDMI 2.1 expands this further with 8K support at 60Hz, giving future-ready compatibility for advanced displays and media. Ultrawide formats, including 3440×1440, are also supported. These are particularly useful for gamers and content creators who rely on extended screen space for immersive gameplay or multitasking.

Advanced Video Technologies

HDMI includes support for multiple HDR formats such as HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision. These technologies improve contrast and color accuracy, resulting in more lifelike visuals across compatible displays.

For gamers, HDMI 2.1 introduces features like Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT), all of which reduce screen tearing and input lag for a more responsive experience.

HDMI also accommodates 3D video through formats like Frame Packing, Side-by-Side, and Top-and-Bottom. While less common today, these options are still available for compatible Blu-ray players and projectors.


Protocol & Communication

HDMI includes built-in protocols that allow devices to communicate automatically, making setup easier and reducing the need for manual configuration.

EDID (Extended Display Identification Data)

EDID lets a display share its capabilities, such as resolution, refresh rate, and supported audio formats, with the source device over a dedicated communication line called the Display Data Channel (DDC). This helps ensure the video and audio signals are optimized for the specific display, eliminating the need to adjust settings manually.

When a new device is connected, Hot Plug Detection (HPD) sends a signal that prompts the EDID handshake. The source then reads the display’s capabilities and adjusts its output accordingly, ensuring compatibility and the best possible image and sound quality.

CEC (Consumer Electronics Control)

CEC is a protocol that allows one remote to control multiple HDMI-connected devices. For example, pressing play on a Blu-ray player can automatically power on the TV and switch to the correct input without additional steps.

Although convenient, CEC features are not always consistent across different brands. Manufacturers often use custom names for CEC and may implement the protocol differently, which can cause compatibility issues or require users to enable features in the settings menu.


HDMI Ecosystem

HDMI supports a wide range of features that help protect content, ensure device compatibility, and maintain signal quality across different setups.

Content Protection (HDCP)

High-bandwidth Digital Content Protection (HDCP) is built into HDMI to prevent unauthorized copying of digital media like Blu-ray discs, streaming video, and cable broadcasts. It uses an authentication process between the source and display to verify that both are HDCP-compliant.

If a device doesn’t support the required version, such as HDCP 2.2 or 2.3, playback may fail or display an error. Common issues include handshake failures, blank screens, or reduced resolution, especially when using older TVs or HDMI splitters that don’t meet newer HDCP standards.

Compatibility & Interoperability

HDMI is designed to work across many devices, but compatibility often depends on the right connectors and signal support. Adapters such as HDMI to DVI or HDMI to DisplayPort help connect different types of displays and sources.

For longer cable runs, signal boosters or active HDMI extenders may be necessary to preserve quality. Standard copper HDMI cables work reliably up to around 15 meters, but fiber optic HDMI cables are preferred for longer distances to avoid signal degradation.


Application Scenarios

HDMI is used in many real-world setups where reliable, high-quality audio and video transmission is essential.

Home Theater

HDMI makes home theater installation easier by combining audio and video into one cable, reducing clutter and setup time. AV receivers serve as the central connection point for devices like Blu-ray players, game consoles, and streaming boxes.

Displays, projectors, and soundbars benefit from HDMI’s support for surround sound and advanced formats, especially when using ARC or eARC for simplified audio return without extra cables. This setup allows for a cleaner layout and better user experience.

PC Gaming

For gamers, HDMI 2.1 allows higher frame rates, better resolution, and smoother motion. Many graphics cards support features like Variable Refresh Rate and Auto Low Latency Mode, improving gameplay responsiveness and reducing lag.

HDMI also enables clean multi-monitor setups by supporting high bandwidth video and consistent image quality across displays, which is especially useful for immersive or productivity-focused gaming environments.

Professional Use

In professional environments, HDMI plays a key role in several fields. In medical imaging, it supports high-resolution displays that help doctors and technicians analyze diagnostic visuals with greater clarity.

Digital signage systems in malls, airports, and conference centers use HDMI to drive content-rich displays that deliver ads, schedules, or alerts. Broadcast studios and live event venues also rely on HDMI for transmitting high-definition video to monitors, control rooms, and production equipment.


Troubleshooting Guide

HDMI issues are common and can often be resolved with simple checks or basic tools, even without advanced technical knowledge.

Common Issues

A “No Signal” message usually points to a loose cable, an input mismatch, or a resolution setting the display doesn’t support. Double-checking cable connections and selecting the correct input on the TV or monitor can often resolve the issue. If the error persists, lowering the resolution on the source device may help.

HDCP handshake failures happen when a connected device isn’t compliant with the required HDCP version. This can block video playback or result in a blank screen. Using certified cables and checking that all devices meet the same HDCP standard is essential.

Color space mismatches may cause poor image quality. Ensuring that both the source and display use the same format, such as RGB or YCbCr, can fix washed-out or oversaturated images.

Audio dropouts often stem from bandwidth issues or settings that exceed the system’s capabilities. Adjusting the audio output format or switching cables can restore stability.

Diagnostic Tools

Installers and professionals often use EDID readers to confirm that a display is reporting its capabilities correctly. This helps avoid miscommunication between devices that could lead to resolution or audio problems.

Signal testers are used to check cable quality and ensure that a video signal is being properly transmitted. These tools can identify weak links in the chain, especially when dealing with long cable runs or splitters.

Protocol analyzers go further by checking the timing, encryption keys, and communication between devices. These tools are typically used in product development or troubleshooting complex system errors.

For home users, many problems can be resolved by replacing a damaged cable, applying firmware updates, or simplifying the connection path between devices.
