H.264: Definition, Use Cases, and Technical Structure

---

What is H.264?

H.264, or Advanced Video Coding (AVC), is a video format that makes large video files smaller without making them look bad. It was developed by two expert groups that focus on video standards. You’ll find H.264 used in everything from YouTube videos and video calls to security cameras and Blu-ray Discs. It’s popular because it strikes a good balance: the files stay small, the picture stays clear, and it doesn’t take much computing power to play.

While newer formats like H.265, VP9, and AV1 try to improve compression or reduce licensing fees, they often require newer devices or more processing power. H.264 works on nearly all phones, browsers, cameras, and editing software today. That’s why it’s still the default choice for many creators, platforms, and tools. It may not be the newest codec, but it’s one of the most reliable and widely supported.

Technical Foundations of H.264

H.264 is built on compression techniques that shrink video file sizes without noticeably lowering quality.

Core Compression Principles

H.264 uses a mix of spatial and temporal compression to handle both still and moving parts of a video. Spatial compression works within a single frame by analyzing blocks of pixels and removing repeated patterns. It compares each block to its neighbors to avoid storing the same visual data more than once.

Temporal compression looks across frames to find similarities over time. If a background stays the same or a subject moves slightly, H.264 stores only the changes instead of full new images. This reduces file size even more.

The format also uses transform coding. It converts visual data into mathematical values using a Discrete Cosine Transform (DCT), simplifies the data through quantization, and compresses it using entropy coding methods like CABAC (Context-Adaptive Binary Arithmetic Coding) or CAVLC (Context-Adaptive Variable Length Coding).

Key Features & Improvements

H.264 processes video using macroblocks, which are 16×16 pixel sections. These were a core part of the original design and allow efficient analysis and compression. In later standards like H.265, macroblocks evolved into more flexible structures called Coding Tree Units (CTUs), but H.264 remains built around macroblocks.

The codec also supports multiple reference frames. This lets it compare a current frame to several past or future frames instead of just one. The result is more accurate motion tracking and better compression, especially in scenes with complex movement.

To improve picture quality, H.264 includes a deblocking filter. This filter smooths out the edges between blocks, reducing visual artifacts that can appear when images are highly compressed. The result is a cleaner and more natural-looking video.

H.264 in Container Formats

H.264 video needs to be placed inside a container format to be usable, as containers organize how video, audio, and metadata are stored and played together.

Common Containers Supporting H.264

H.264 video streams are packaged into container formats. These define how audio, video, and metadata are stored together.

MP4 (MPEG-4 Part 14) is the most common container for H.264 video. It works on almost all devices and platforms, making it ideal for streaming, social media, and mobile playback.

MKV (Matroska) supports H.264 and many other codecs. Creators and archivists often use MKV to store high-quality videos with multiple audio tracks, subtitles, and metadata.

MOV (QuickTime) is Apple’s native format. It supports H.264 video and is preferred in video editing workflows, especially on macOS and iOS systems.

TS (Transport Stream) is used in broadcasting and streaming. It breaks video into small packets for smooth delivery, even over unstable internet connections.

How H.264 Interacts with Containers

Encapsulation means H.264 compresses the video into units called NALs. Containers wrap these units for easy storage, playback, and sharing.

Timestamps in the container help match the video to the audio, especially when using B-frames for advanced compression.

Subtitles and metadata are stored in the container alongside the video, providing language support and file information.

Audio Handling in H.264 Systems

H.264 only manages video. To deliver full multimedia playback, it must be used with a separate audio codec inside a container format.

Audio Codec Pairings

AAC (advanced Audio Coding) is the most common audio partner for H.264, especially in MP4 files. It delivers good sound quality at low file sizes, which makes it ideal for streaming and mobile use.

MP3 is older and less efficient but still supported by nearly all devices and browsers. It’s often used for compatibility in legacy systems.

AC-3, also known as Dolby Digital, is commonly found in DVDs, Blu-rays, and TV broadcasts. It supports surround sound and fits into many H.264-based workflows.

Opus is a newer codec designed for voice and real-time communication. It’s used in apps like Zoom or Discord and works well with WebRTC for browser-based calls.

Synchronization Challenges

H.264 systems rely on timestamps to sync audio with video. Presentation timestamps (PTS) control when each frame appears, while decoding timestamps (DTS) show when each frame is processed. B-frames, which may be shown out of order, make this syncing more complex.

Variable frame rates, often found in smartphone recordings, can lead to timing mismatches. The video may speed up or slow down, but audio needs to stay in sync throughout.

In longer recordings, small timing differences can cause audio drift. Without correction, the audio can slowly fall out of alignment. Containers and media players use internal clocks to keep everything in sync over time.

Encoding & Decoding H.264

The H.264 format uses flexible encoding options to control video quality, compression level, and playback compatibility.

Encoding Process

Encoding H.264 video means compressing it in a way that balances image clarity with file size and speed. Rate control settings are important.

Constant Bitrate (CBR) keeps file size steady but may sacrifice quality during complex scenes. Variable Bitrate (VBR) changes the bitrate depending on the scene, which improves quality while saving space. Constant Rate Factor (CRF) keeps quality consistent by adjusting bitrate as needed.

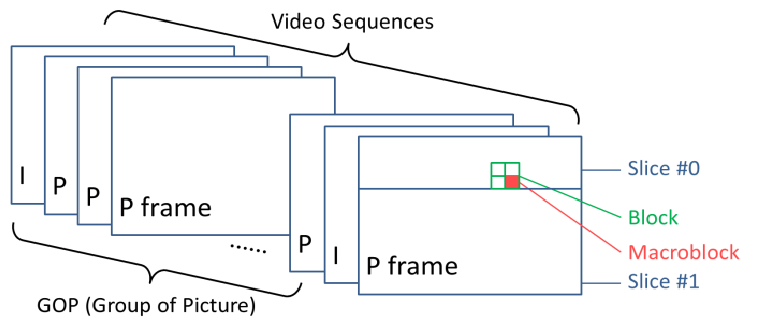

The encoder also builds a structure using different frame types. I-frames are full images used as reference points. P-frames only store what’s changed since the last I-frame. B-frames compare both past and future frames to compress video even further.

H.264 offers different profiles. Baseline is for simple uses like video calls. Main works for broadcasts and file storage. High is used when quality matters most, such as in Blu-rays or streaming services.

Hardware Acceleration

To save time and reduce CPU usage, many systems use hardware-based encoders. NVIDIA’s NVENC is popular in tools like OBS and DaVinci Resolve, allowing fast, high-quality video export. Intel’s Quick Sync is built into many processors and is great for real-time streaming. AMD’s AMF offers a similar boost for those using Radeon GPUs.

Decoding H.264 is also hardware-accelerated on most devices, including phones, TVs, and media players. This helps videos play smoothly without overheating or draining the battery. It’s one reason why H.264 works so well across devices and platforms.

Applications & Use Cases

H.264 plays a key role in how digital video is delivered, stored, and viewed across different industries and devices.

Streaming Services

H.264 is used in adaptive bitrate streaming, the method behind platforms like YouTube, Netflix, and Facebook Live. Videos are cut into short segments, each encoded at different quality levels. The player switches between these levels depending on the viewer’s internet speed, helping avoid buffering or playback interruptions.

With optimized settings, H.264 can also support low-latency streaming. This is useful for live sports, gaming events, or interactive broadcasts where delays must be minimal. When configured properly, latency can be reduced to under two seconds.

Broadcast & Physical Media

H.264 is a required format for Blu-ray Discs. It supports high-definition video up to 1080p and allows for multiple audio tracks and subtitles, all packed into a single disc at high quality and manageable file sizes.

Digital television standards like ATSC in North America and DVB in Europe also use H.264. These systems adopted it because it provides better compression than older formats like MPEG-2, delivering equal or better quality while using less bandwidth.

Surveillance & Real-Time Systems

In security and surveillance systems, H.264 enables efficient long-term video recording. Its strong compression helps reduce storage needs without losing important visual detail, which is crucial for monitoring over extended periods.

Cameras, DVRs, and IP-based monitoring systems often include hardware that handles H.264 compression directly. This allows for real-time encoding, remote viewing, and continuous recording, all without overloading the system’s processor or network.

Limitations & Alternatives

While H.264 remains widely used, it has some drawbacks that matter in today’s high-resolution and bandwidth-sensitive environments.

Drawbacks of H.264

H.264 is no longer the most efficient codec available. Newer formats like H.265 can deliver the same visual quality at about half the file size. This efficiency is important for 4K and higher resolutions, where video files grow quickly and put more pressure on networks and storage systems.

Another limitation is that H.264 is not royalty-free. Companies that use it in streaming platforms, cameras, or playback devices often need to pay licensing fees to MPEG LA. These costs can add up, especially for manufacturers or services that operate at scale.

Successor Technologies

H.265, also called HEVC, is the most common replacement for H.264. It compresses video more efficiently but needs more computing power to encode and decode. It’s used in 4K streaming, Ultra HD Blu-rays, and newer smartphones and smart TVs.

AV1 is another modern codec developed by companies like Google, Amazon, and Netflix. It’s royalty-free and offers strong compression, but encoding times are slower. Still, its open nature is helping it gain traction in browsers and apps.

VVC, or H.266, is designed for the future of video, including 8K content and beyond. It offers even better compression than HEVC but is still new and not widely supported in consumer devices.
